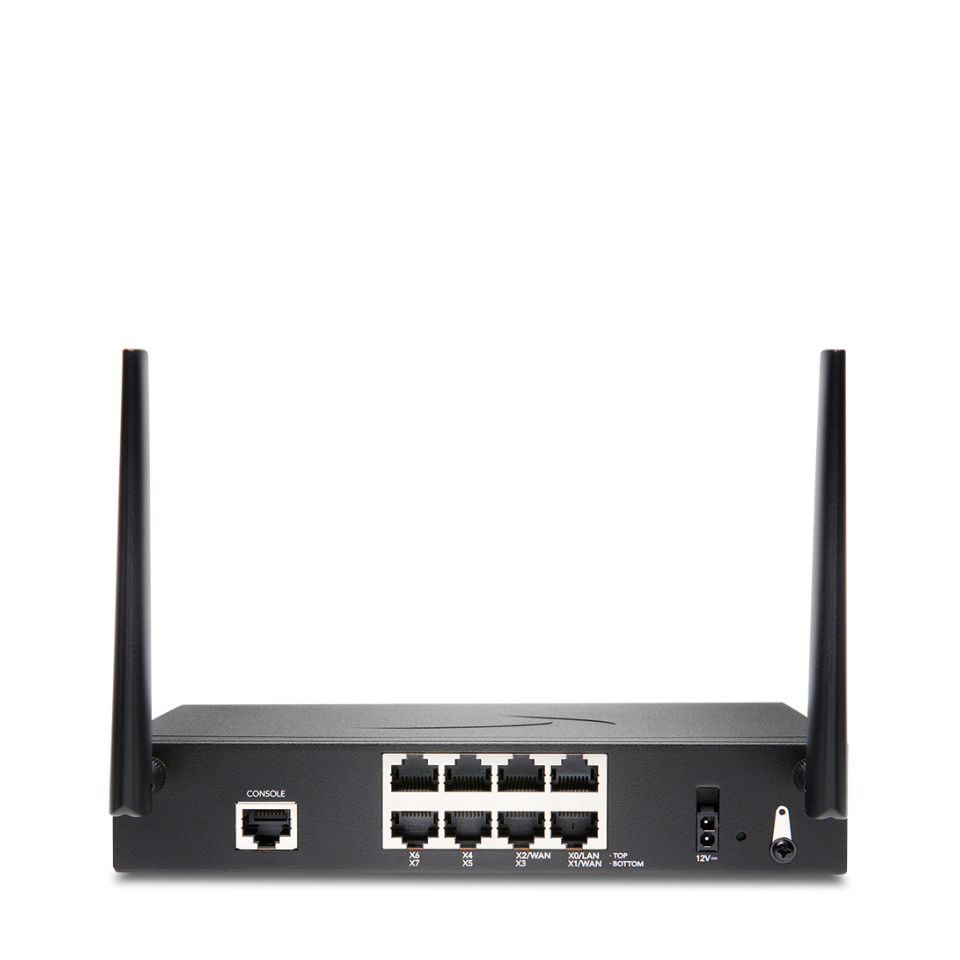

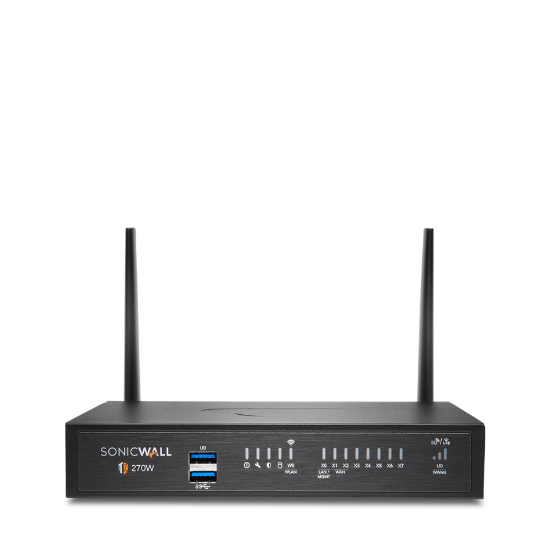

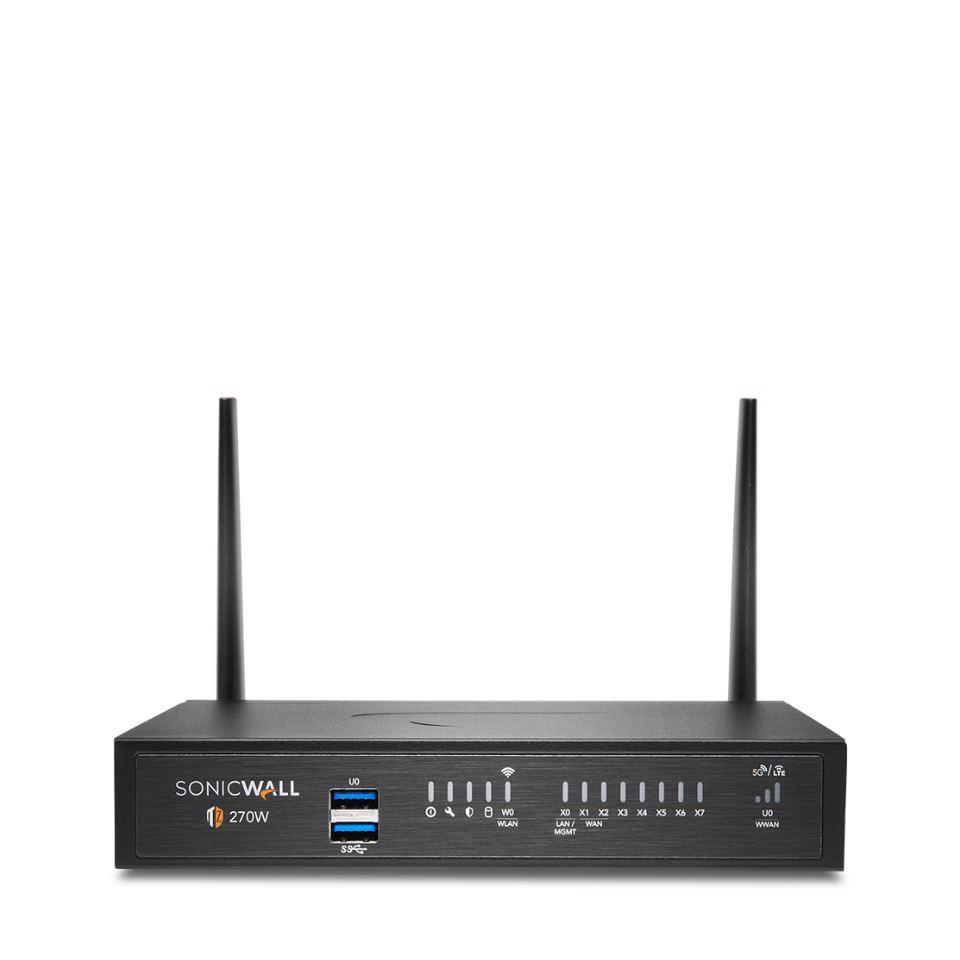

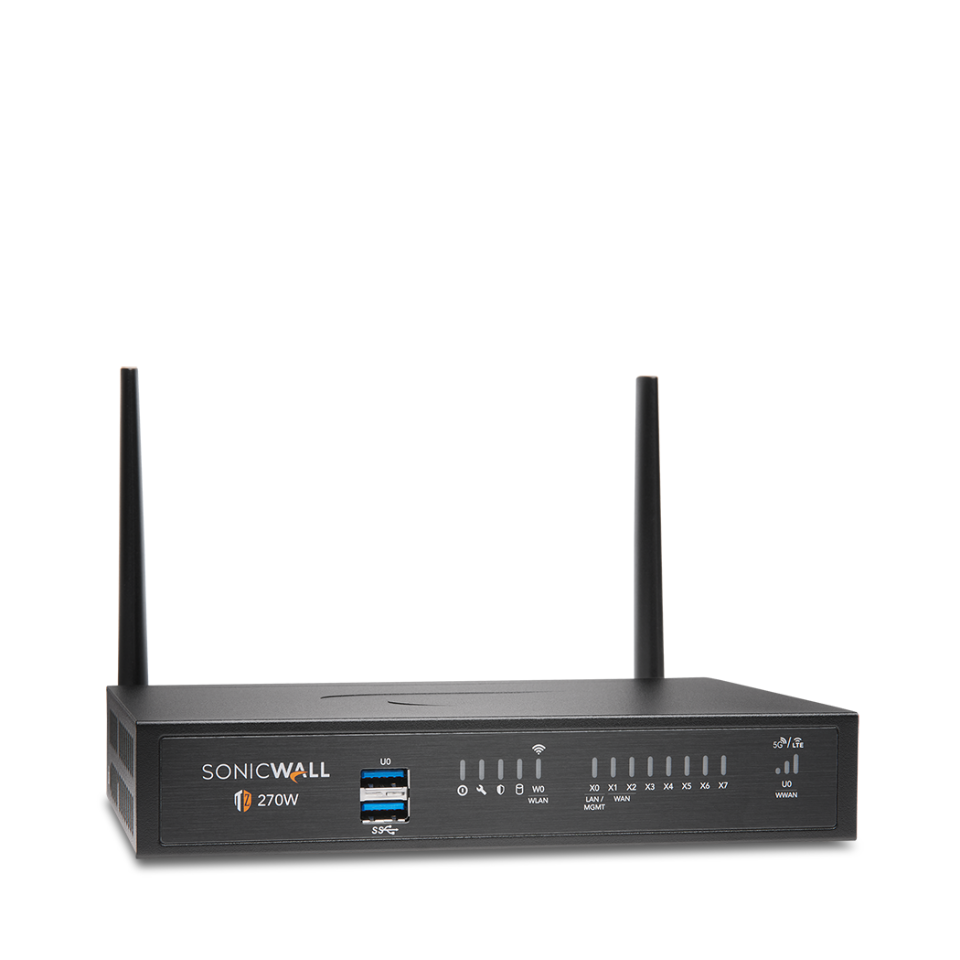

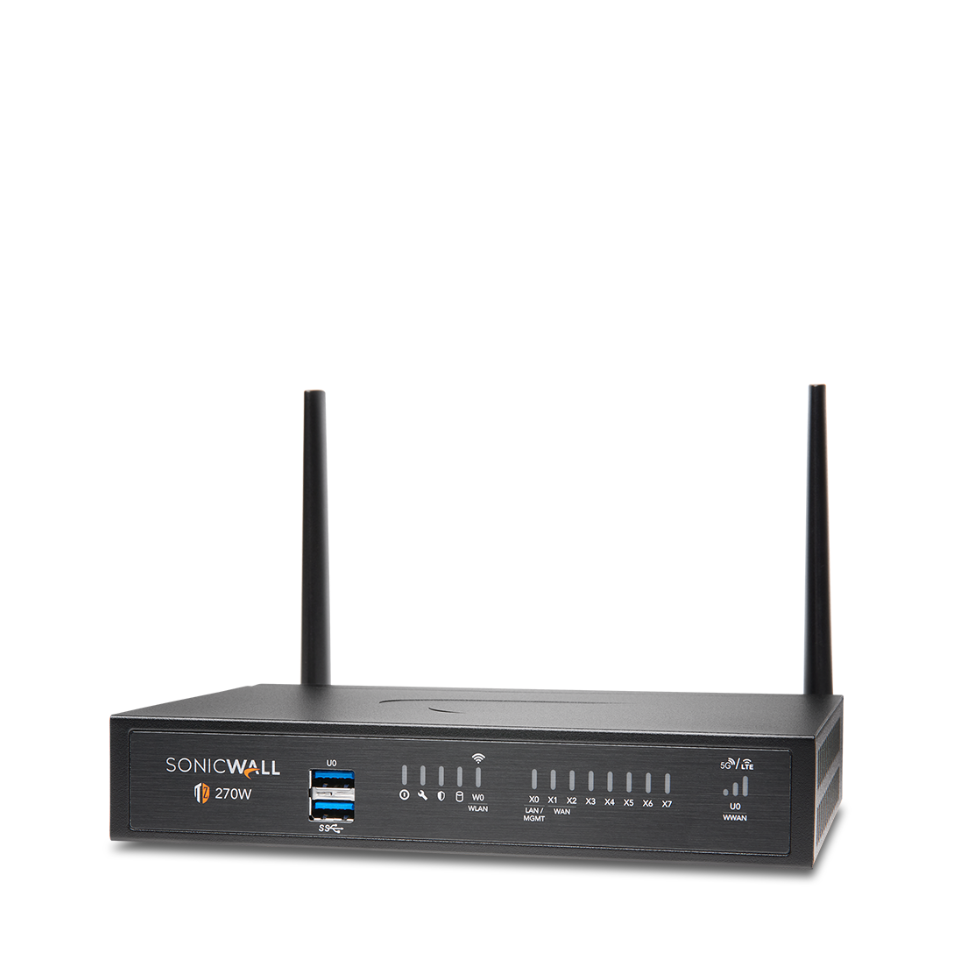

SonicWall TZ270 Wireless-AC INTL

This is the base SonicWall TZ270W Appliance. No licenses or security services are included.
SKU: 02-SSC-8059

See configuration tab below.

Designed for home offices and lean branches, the TZ270W series deliver industry-validated security effectiveness with best-in-class price-performance.

Built on next-gen hardware, it integrates firewalling, switching and wireless capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points. It allows tight integration with Capture Client for seamless endpoint security.

  1. 1 GbE interfaces in a desktop form factor
  2. SD-Branch ready
  3. Secure SD-WAN capability
  4. SonicExpress mobile App onboarding
  5. Zero-Touch Deployment
  6. Single-pane-of-glass-management through cloud or firewall
  7. SonicWall Switch, SonicWave Access Point and Capture Client integration
  8. Built-in and expandable storage
  9. Redundant power
  10. High port density
  11. Cellular failover
  12. SonicOS 7.0
  13. Groundbreaking performance
  14. High connection count
  15. Fast DPI performance
  16. Low TCO

This is the base SonicWall TZ270W Appliance. No licenses or security services are included. To include a full security services package (EPSS or APSS), please see either

SonicWall TZ270W TotalSecure - Advanced Edition

SonicWall TZ270W TotalSecure - Essential Edition

Operating systemSonicOS 7.0
Interfaces8x1GbE, 2 USB 3.0, 1 Console
Wireless support2x2 802.11ac Wave 2 (TZ270W only)
Power over Ethernet (PoE) supportN/A
Storage expansion slot (Bottom)Optional up to 256GB
ManagementNetwork Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Redundant power supplyN/A
Single Sign-On (SSO) Users1000
VLAN interfaces64
Access points supported (maximum)16
Firewall/VPN Performance
Firewall inspection throughput2.0 Gbps
Threat Prevention throughput750 Mbps
Application inspection throughput1.0 Gbps
IPS throughput1.0 Gbps
Anti-malware inspection throughput750 Mbps
TLS/SSL decryption and inspection throughput (DPI SSL)300 Mbps
IPSec VPN throughput750 Mbps
Connections per second6000
Maximum connections (SPI)750 000
Maximum connections (DPI)150 000
Default/Maximum connections (DPI SSL)25 000
Site-to-site VPN tunnels50
IPSec VPN clients (maximum)5 (200)
SSL VPN licenses (maximum)1 (50)
Encryption/authenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10
NetExtenderMicrosoft® Windows 10, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10
Security Services (with subscription to EPSS or APSS)
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SS
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceSupported
Application VisualizationYes
Application ControlYes
Capture Advanced Threat ProtectionYes
DNS SecurityYes
IP address assignmentStatic, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database150
VoIPFull H.323v1-5, SIP
CertificationsFIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications pendingFIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Form factorDesktop
Power supply36W External
Maximum power consumption (W)16.84 (TZ270), 18.91 (TZ270W)
Input power100 - 240 VAC, 50-60 Hz, 3A
Total heat dissipation57.42 (TZ270), 64.48 (TZ270W)
Dimensions3.5 x 13.5 x 19 (cm)
1.8 x 5.3 x 7.5 (in)
Weight0.82 kg / 1.81 lbs (TZ270), 0.85 kg / 1.87 lbs (TZ270W)
WEEE weight1.18 kg / 2.6 lbs (TZ270), 1.24 kg / 2.73 lbs (TZ270W)
Shipping weight1.41 kg / 3.11 lbs (TZ270), 1.47 kg / 3.25 lbs (TZ270W)
MTBF (years)51.1 (TZ270), 27.1 (TZ270W)
Environment (Operating/Storage)32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity5-95% non-condensing
Major regulatory compliance (wired models)FCC ClassB, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, KCC/MSI
Major regulatory compliance (wireless models)FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL6
