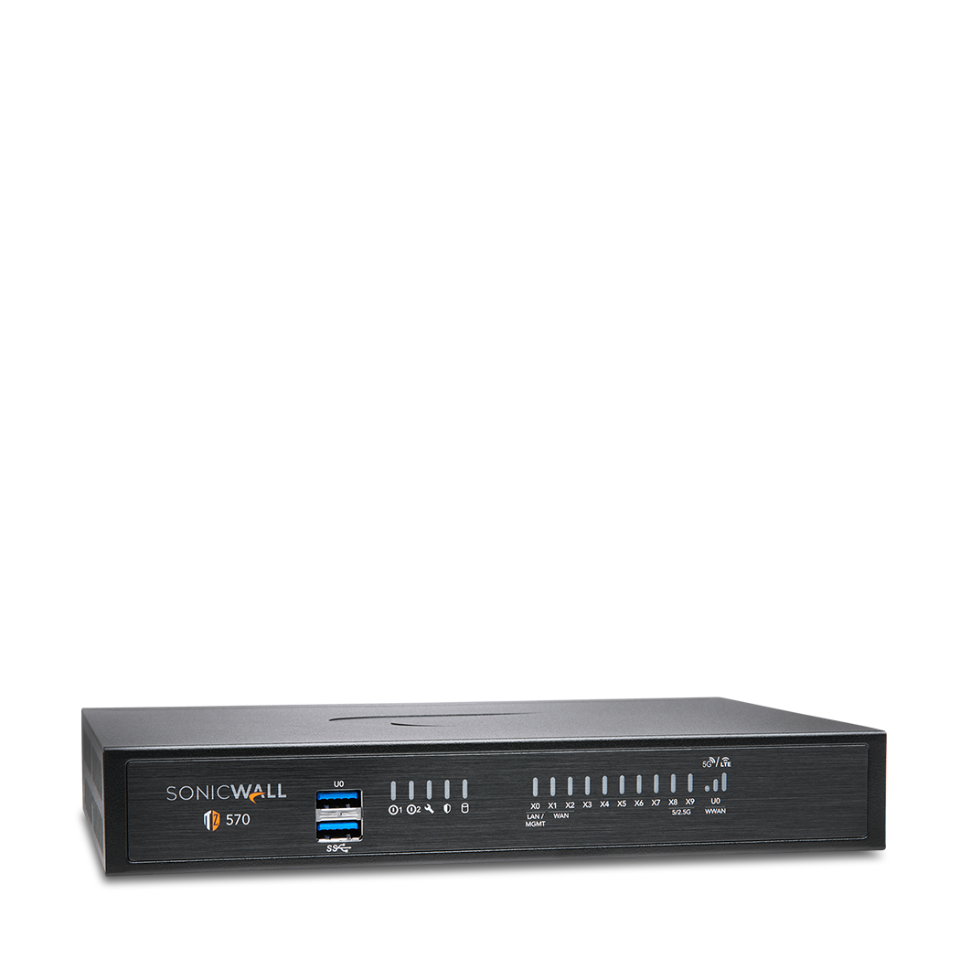

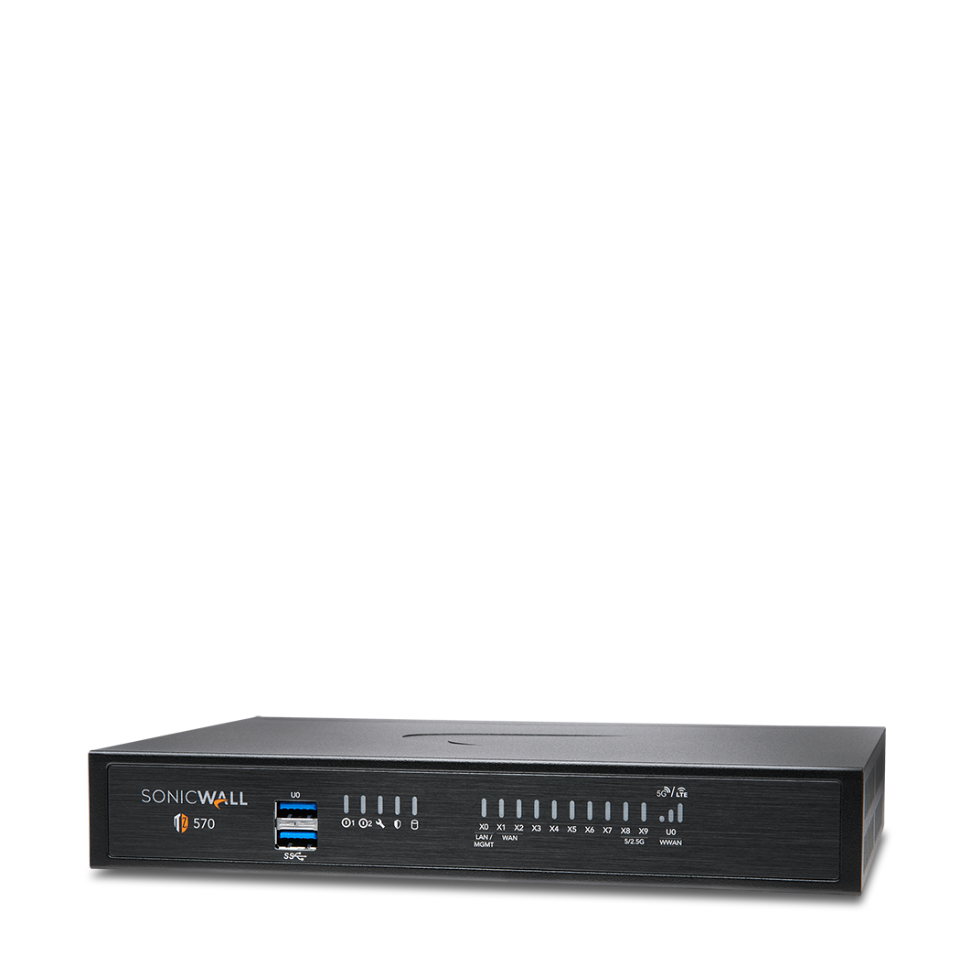

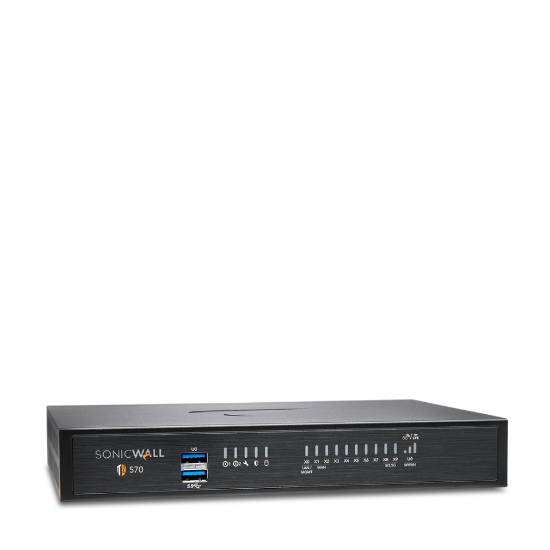

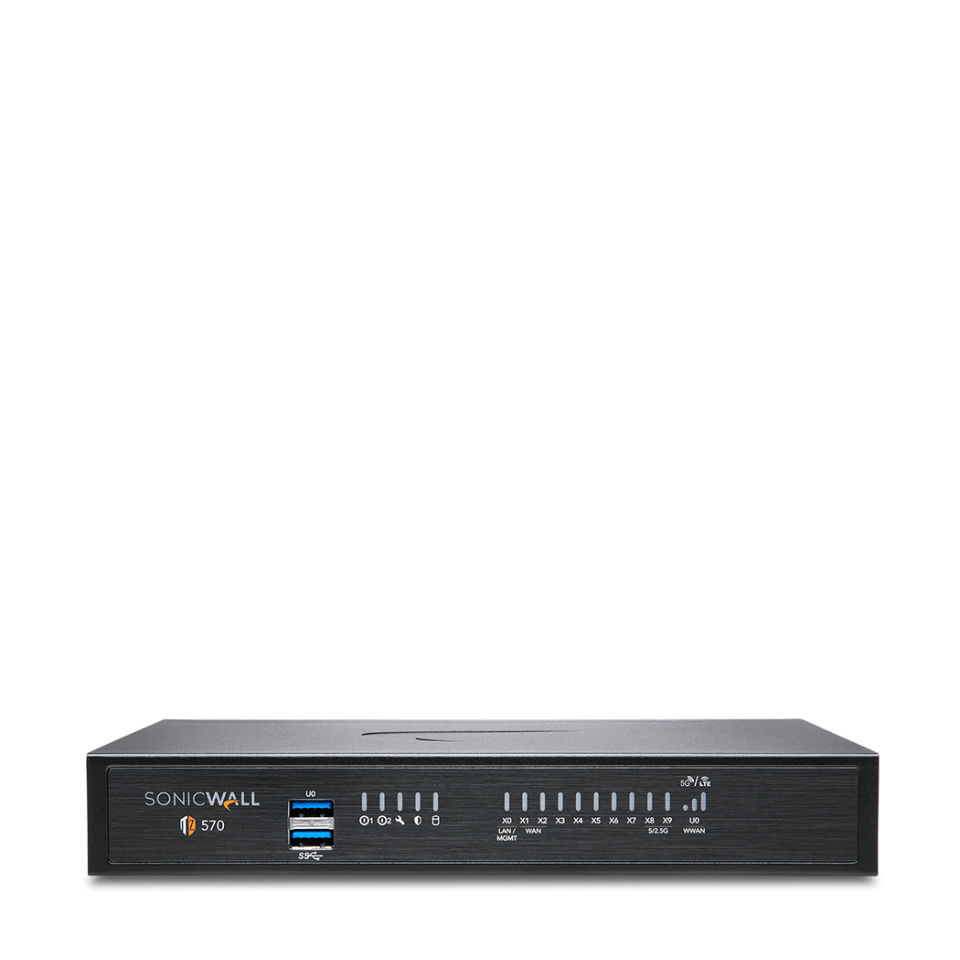

SonicWall TZ570 Appliance
SonicWall TZ570 Appliance Right
SonicWall TZ570 Appliance Left
SonicWall TZ570 Appliance Rear
SonicWall TZ570 Appliance Bottom
 Appliance
 PoE
SonicWall TZ570 Appliance
SonicWall TZ570 Appliance Right
SonicWall TZ570 Appliance Left
SonicWall TZ570 Appliance Rear
SonicWall TZ570 Appliance Bottom

SonicWall TZ570P

This is the base SonicWall TZ570P appliance which includes support for PoE devices. No licenses or security services are included.
SKU: 02-SSC-2841
£1,386.14
£1,052.08

See configuration tab below.

The SonicWall TZ570 series, is the first desktop-form factor next-generation firewall (NGFW) with 5 Gigabit Ethernet interfaces.

Designed for mid-sized organizations and distributed enterprise with SDBranch locations, the TZ570 series delivers industry-validated security effectiveness with best-in-class priceperformance. TZ570 NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, realtime breach detection and prevention.

Highlights
  1. 5 GbE interfaces in a desktop form factor
  2. SD-Branch ready
  3. Secure SD-WAN capability
  4. SonicExpress mobile App onboarding
  5. Zero-Touch Deployment
  6. Single-pane-of-glass-management through cloud or firewall
  7. SonicWall Switch, SonicWave Access Point and Capture Client integration
  8. Built-in and expandable storage
  9. Redundant power
  10. High port density
  11. Cellular failover
  12. SonicOS 7.0
  13. Groundbreaking performance
  14. High connection count
  15. Fast DPI performance
  16. Low TCO
Licensing

This is the base SonicWall TZ570P Appliance which includes support for PoE devices. No licenses or security services are included. To include a full security services package, please see either

SonicWall TZ570P TotalSecure - Advanced Edition

SonicWall TZ570P TotalSecure - Essential Edition

SonicWall TZ570 and TZ670 Launch Video:

The TZ570 is highly scalable, with high port density of 10 ports. It features both in-built and an expandable storage of up to 256GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure.

Deployment of TZ570 is further simplified by Zero-Touch Deployment, with the ability to simultaneously roll out these devices across multiple locations with minimal IT support. Built on next-gen hardware, it integrates firewalling, switching and wireless capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points. It allows tight integration with Capture Client for seamless endpoint security.

Diagram - Retail or small office diagram
Small to Medium Size Business
  1. Save space and money with an integrated gateway security solution with firewalling, switching and wireless capabilities
  2. Reduce complexity and get the business running without relying on IT personnel with easy onboarding using SonicExpress App and Zero-Touch Deployment, and easy management through a single pane of glass
  3. Attain business continuity by providing failover to cellular connectivity
  4. Protect network from attacks with a comprehensive security solution that incorporates VPN, IPS, CFS, AV and much more
  5. Leverage high port density to power on multiple PoE devices such as IP phones and IP cameras
  6. Boost employee productivity by blocking unauthorized access with traffic segmentation and access policies
Distributed Enterprise with SD-Branches
  1. Enhance customer experience and adapt to the changing business needs by enabling next-gen branch connectivity with SD-Branch
  2. Drive business growth by investing in next-gen appliances with multi-gigabit and advanced security features, to future-proof against the changing network and security landscape
  3. Secure networks from the most advanced attacks with advanced security features and automatically block threats on decrypted traffic using protocols such as TLS 1.3
  4. Leverage end-to-end network security with seamless integration of SonicWave access points, SonicWall Switches and Capture Client
  5. Ensure seamless communication as stores talk to HQ via easy VPN connectivity which allows IT administrators to create a hub and spoke configuration for the safe transport of data between all locations
  6. Improve business efficiency, performance and reduce costs by leveraging TZ570’s hardware and software enhancements, plus features such SD-WAN technology
  7. Scale quickly and effortlessly with SonicExpress App and Zero-Touch Deployment
  8. Ensure business continuity by providing failover to cellular connectivity
  9. Maintain compliance with security features, and leverage built-in and expandable storage to store logs for audit purposes
Diagram - SD Branch
General
Operating systemSonicOS 7.0
Interfaces8x1GbE, 2x5GbE, 2 USB 3.0, 1 Console
Power over Ethernet (PoE) support5 PoE or 3 PoE+
ExpansionStorage Expansion Slot (Up to 256GB, Rear)
ManagementNetwork Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Single Sign-On (SSO) Users2500
VLAN interfaces256
Access points supported (maximum)32
Firewall/VPN Performance
Firewall inspection throughput4.0 Gbps
Threat Prevention throughput2.0 Gbps
Application inspection throughput2.5 Gbps
IPS throughput2.5 Gbps
Anti-malware inspection throughput2.0 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)750 Mbps
VPN throughput1.8 Gbps
Connections per second16000
Maximum connections (SPI)1 250 000
Maximum connections (DPI)400 000
Default/Maximum connections (DPI SSL)30 000
VPN
Site-to-site VPN tunnels200
IPSec VPN clients (maximum)10 (500)
SSL VPN licenses (maximum)2 (200)
Encryption/authenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10
NetExtenderMicrosoft® Windows 10, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10
Security Services
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SS
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceSupported
Application VisualizationYes
Application ControlYes
Capture Advanced Threat ProtectionYes
DNS SecurityYes
Networking
IP address assignmentStatic, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database250
VoIPFull H.323v1-5, SIP
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
CertificationsFIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications pendingFIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Hardware
Form factorDesktop
Power supply180W
Maximum power consumption (W)108.75
Input power100-240 VAC, 50-60 Hz
Total heat dissipation370.84
Dimensions3.5 x 15 x 22.5 cm
1.38 x 5.91 x 8.85 in
Weight0.99 kg / 2.18 lbs
WEEE weight1.57 kg / 3.46 lbs
Shipping weight2.08 kg / 4.58 lbs
MTBF (years)31.7
Environment (Operating/Storage)32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity5-95% non-condensing
Regulatory
Major regulatory compliance (wired models)FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, UL/ cUL, TUV/ GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
*
*
*
