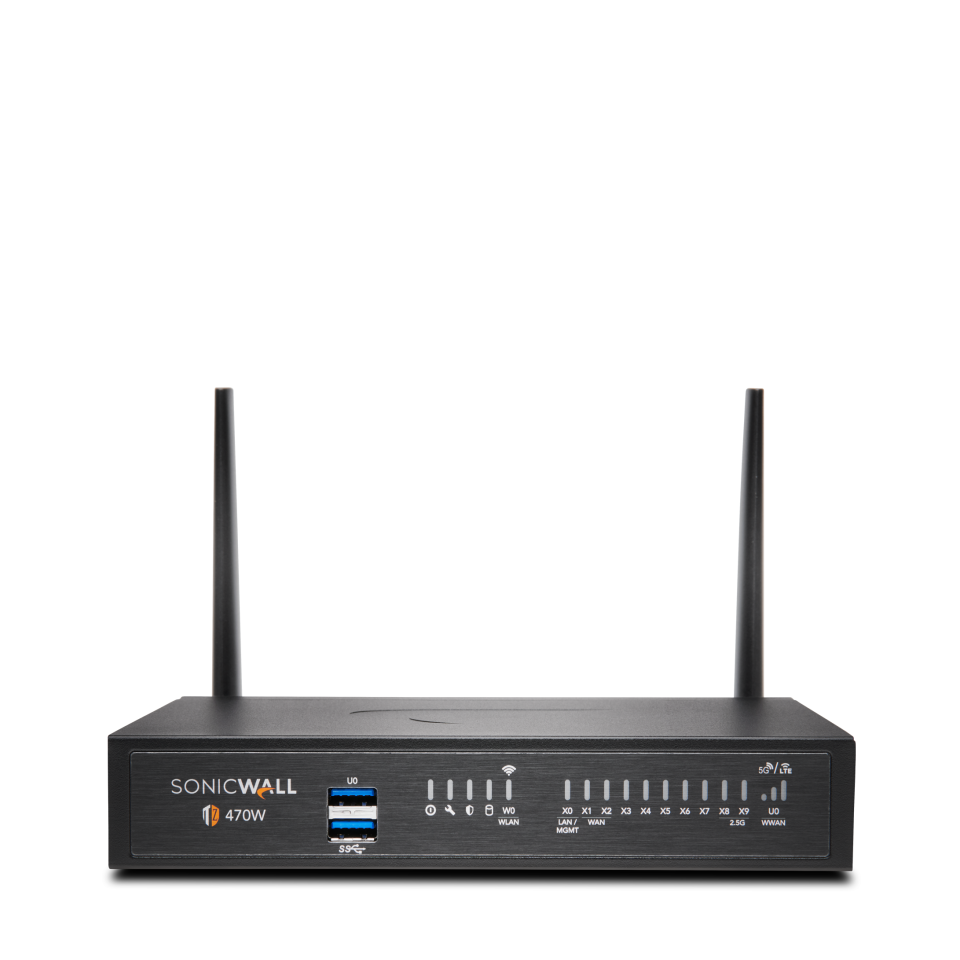

SonicWall TZ470W Appliance

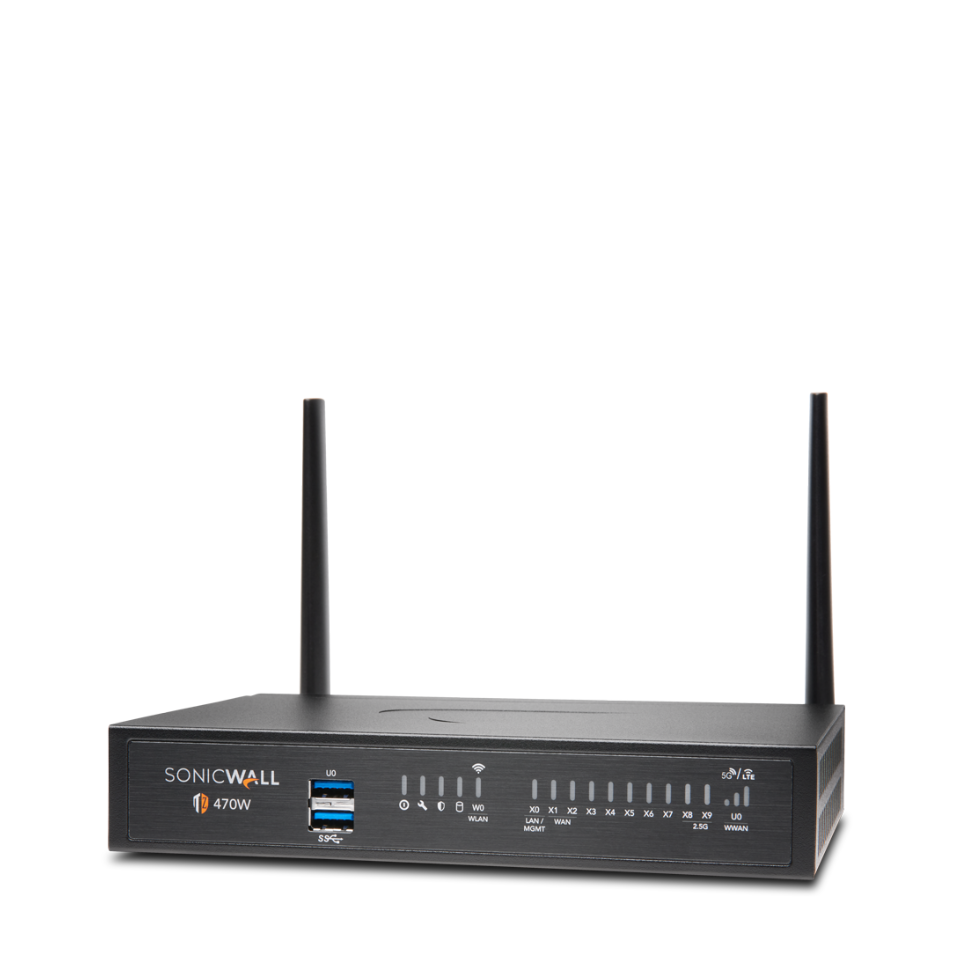

SonicWall TZ470W Appliance Left

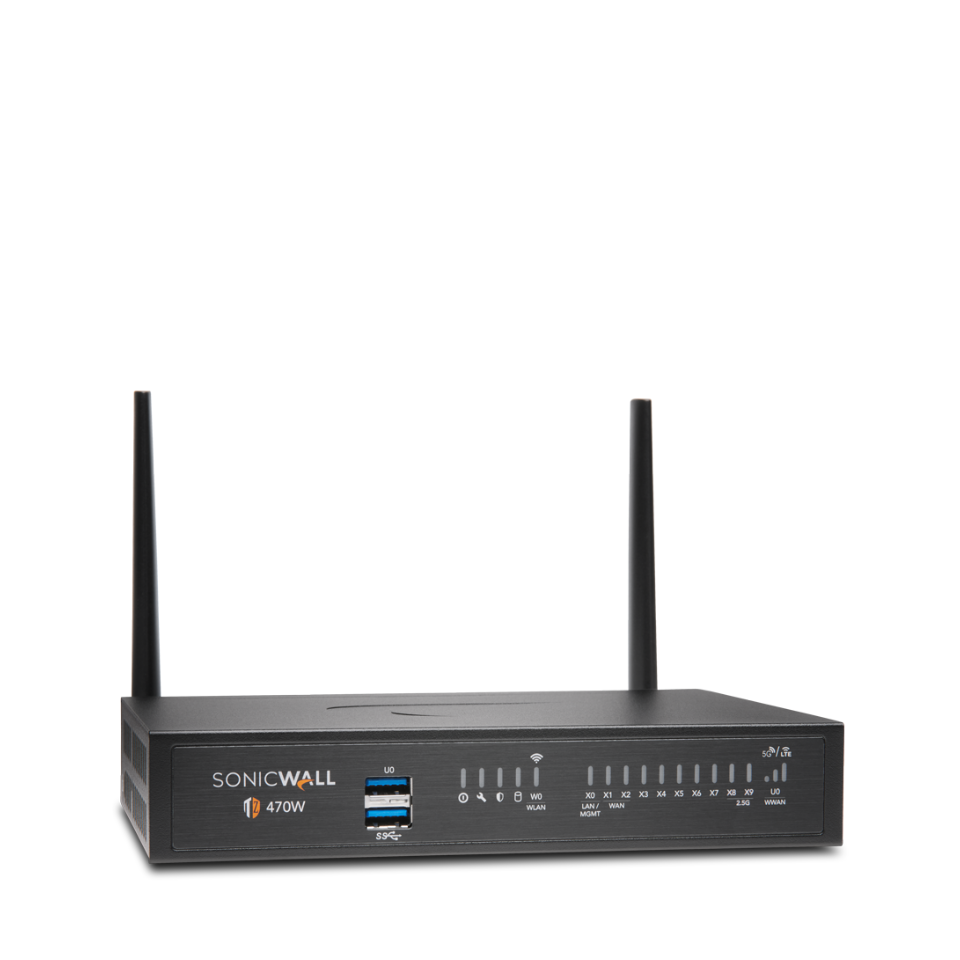

SonicWall TZ470W Appliance Right

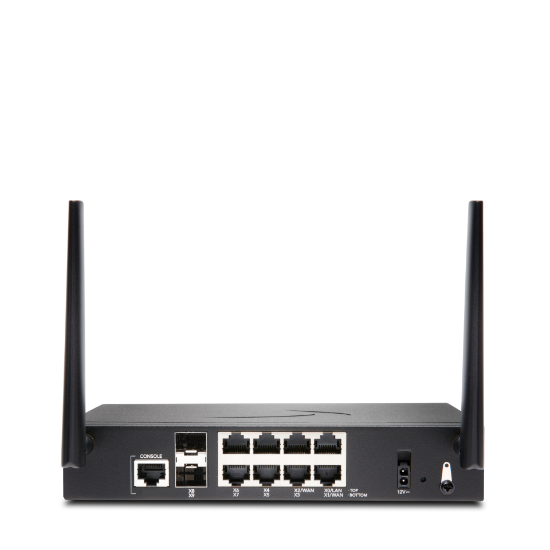

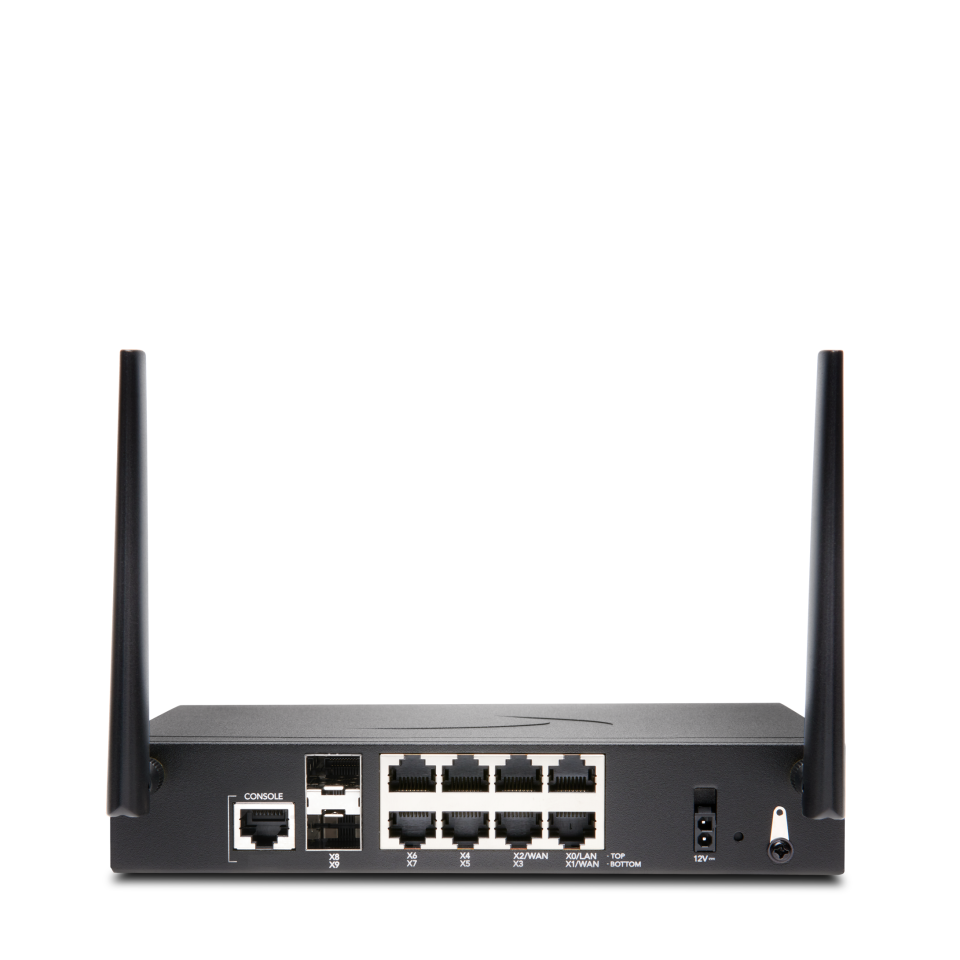

SonicWall TZ470W Appliance Rear
 Appliance
SonicWall TZ470W Appliance
SonicWall TZ470W Appliance Left
SonicWall TZ470W Appliance Right
SonicWall TZ470W Appliance Rear

SonicWall TZ470 Wireless-AC INTL

This is the base SonicWall TZ470W Appliance. No licenses or security services are included.
SKU: 02-SSC-8057
£1,175.04
£891.86

See configuration tab below.

Designed for small organizations and distributed enterprise with SD-Branch locations, the TZ470 series deliver industry-validated security effectiveness with best-in-class price-performance.

Built on next-gen hardware, it integrates firewalling, switching and wireless capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points. It allows tight integration with Capture Client for seamless endpoint security.

Highlights
  1. 2.5 GbE interfaces in a desktop form factor
  2. SD-Branch ready
  3. Secure SD-WAN capability
  4. SonicExpress mobile App onboarding
  5. Zero-Touch Deployment
  6. Single-pane-of-glass-management through cloud or firewall
  7. SonicWall Switch, SonicWave Access Point and Capture Client integration
  8. Built-in and expandable storage
  9. Redundant power
  10. High port density
  11. Cellular failover
  12. SonicOS 7.0
  13. Groundbreaking performance
  14. High connection count
  15. Fast DPI performance
  16. Low TCO
Licensing

This is the base SonicWall TZ470W Appliance. No licenses or security services are included. To include a full security services package (EPSS or APSS), please see either

SonicWall TZ470W TotalSecure - Advanced Edition

SonicWall TZ470W TotalSecure - Essential Edition

Small to Medium Size Business
  1. Save space and money with an integrated gateway security solution with firewalling, switching and wireless capabilities
  2. Reduce complexity and get the business running without relying on IT personnel with easy onboarding using SonicExpress App and Zero-Touch Deployment, and easy management through a single pane of glass
  3. Attain business continuity by providing failover to cellular connectivity
  4. Protect network from attacks with a comprehensive security solution that incorporates VPN, IPS, CFS, AV and much more
  5. Boost employee productivity by blocking unauthorized access with traffic segmentation and access policies
Distributed Enterprise with SD-Branches
  1. Enhance customer experience and adapt to the changing business needs by enabling next-gen branch connectivity with SD-Branch
  2. Drive business growth by investing in next-gen appliances with multi-gigabit and advanced security features, to future-proof against the changing network and security landscape
  3. Secure networks from the most advanced attacks with advanced security features and automatically block threats on decrypted traffic using protocols such as TLS 1.3
  4. Leverage end-to-end network security with seamless integration of SonicWave access points, SonicWall Switches and Capture Client
  5. Ensure seamless communication as stores talk to HQ via easy VPN connectivity which allows IT administrators to create a hub and spoke configuration for the safe transport of data between all locations
  6. Improve business efficiency, performance and reduce costs by leveraging Gen 7 TZ's hardware and software enhancements, plus features such SD-WAN technology
  7. Scale quickly and effortlessly with SonicExpress App and Zero-Touch Deployment
  8. Ensure business continuity by providing failover to cellular connectivity
  9. Maintain compliance with security features, and leverage built-in and expandable storage to store logs for audit purposes
Diagram - SD Branch
General
Operating systemSonicOS 7.0
Interfaces8x1GbE, 2x2.5GbE, 2 USB 3.0, 1 Console
Power over Ethernet (PoE) supportN/A
Storage expansion slot (Bottom)Optional up to 256GB
ManagementNetwork Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Redundant power supplyN/A
Single Sign-On (SSO) Users2500
VLAN interfaces128
Access points supported (maximum)32
Wireless support2x2 802.11ac Wave 2 (TZ470W only)
Firewall/VPN Performance
Firewall inspection throughput3.5 Gbps
Threat Prevention throughput1.5 Gbps
Application inspection throughput2.0 Gbps
IPS throughput2.0 Gbps
Anti-malware inspection throughput1.5 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)600 Mbps
IPSec VPN throughput1.5 Gbps
Connections per second9000
Maximum connections (SPI)1 000 000
Maximum connections (DPI)250 000
Maximum connections (DPI SSL)35 000
VPN
Site-to-site VPN tunnels150
IPSec VPN clients (maximum)5 (200)
SSL VPN licenses (maximum)2 (150)
Encryption/authenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10
NetExtenderMicrosoft® Windows 10, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10
Security Services (with subscription to EPSS or APSS)
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SS
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceSupported
Application VisualizationYes
Application ControlYes
Capture Advanced Threat ProtectionYes
DNS SecurityYes
Networking
IP address assignmentStatic, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database250
VoIPFull H.323v1-5, SIP
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
CertificationsFIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications pendingFIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Hardware
Form factorDesktop
Power supply36W External
Maximum power consumption (W)19.95 (TZ470), 21.98 (TZ470W)
Input power100 - 240 VAC, 50-60 Hz, 3A
Total heat dissipation (BTU)68.03 (TZ470), 74.95 (TZ470W)
Dimensions3.5 x 13.5 x 19 (cm)
1.8 x 5.3 x 7.5 (in)
Weight0.83 kg / 1.82 lbs (TZ470), 0.87 kg / 1.92 lbs (TZ470W)
WEEE weight1.24 kg / 2.73 lbs (TZ470), 1.27 kg / 2.8 lbs (TZ470W)
Shipping weight1.43 kg / 3.15 lbs (TZ470), 1.51 kg / 3.33 lbs (TZ470W)
MTBF (years)46 (TZ470), 24.1 (TZ470W)
Environment (Operating/Storage)32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity5-95% non-condensing
Regulatory
Major regulatory compliance (wired models)FCC ClassB, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, KCC/MSI
Major regulatory compliance (wireless models)FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL6

*
*
*
