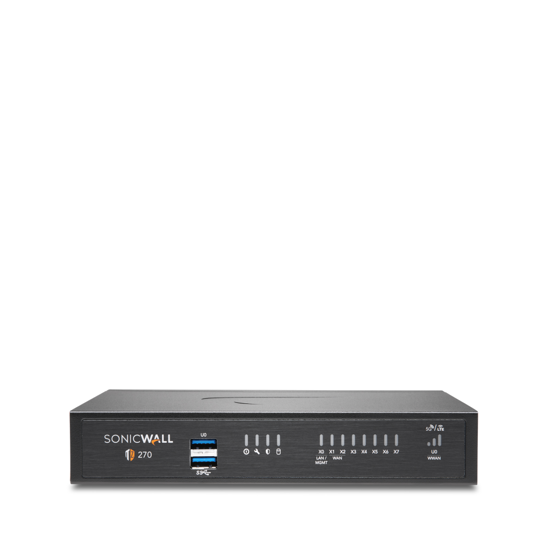

SonicWall TZ270 Appliance

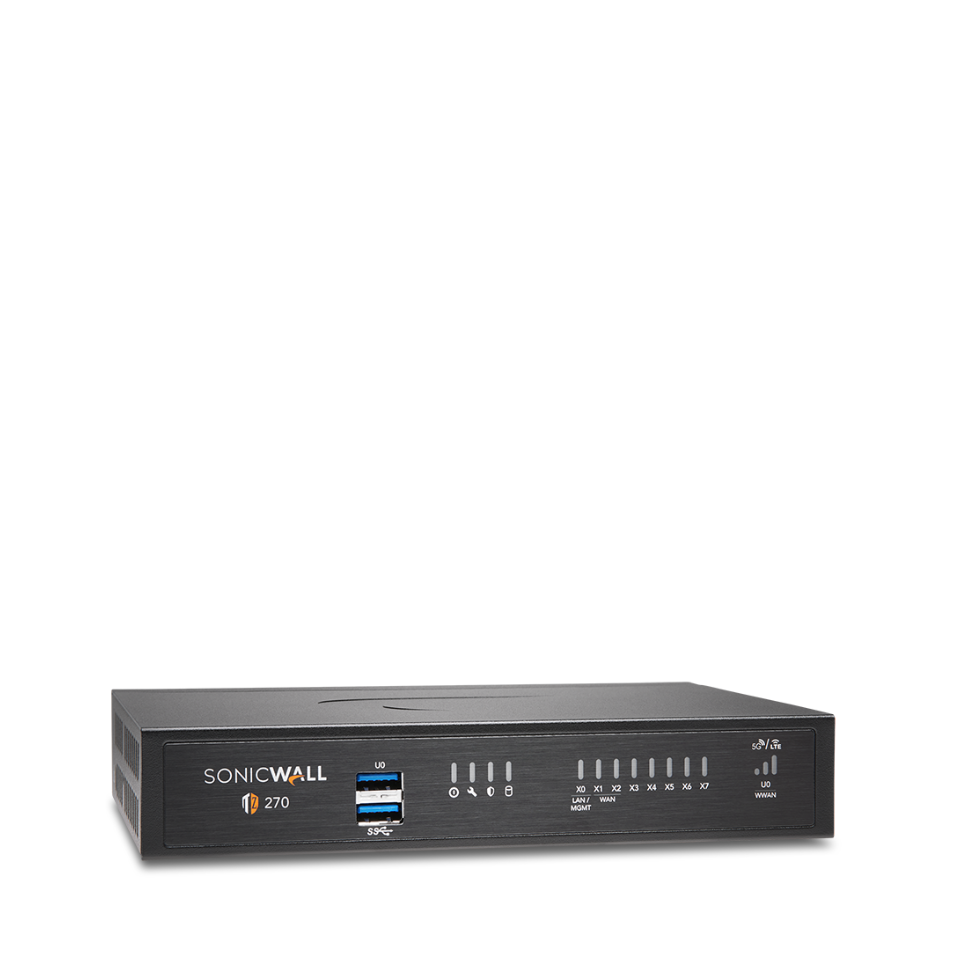

SonicWall TZ270 Appliance Left

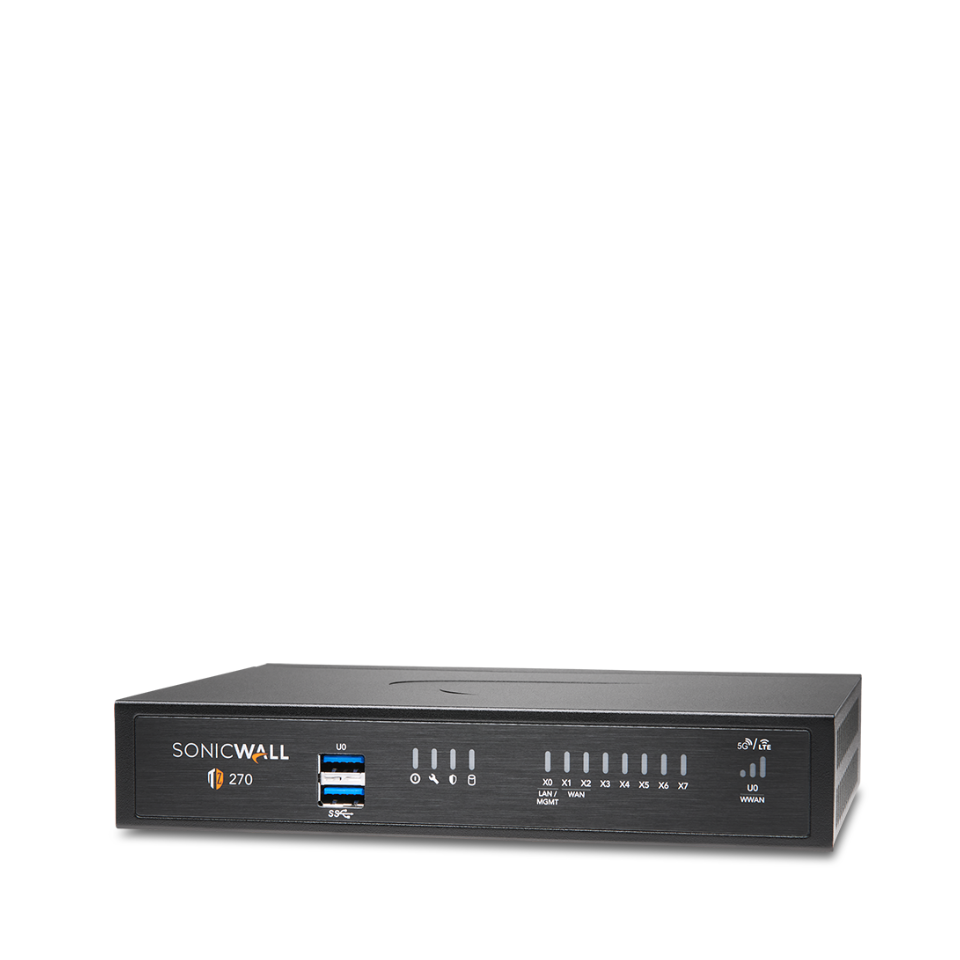

SonicWall TZ270 Appliance Right

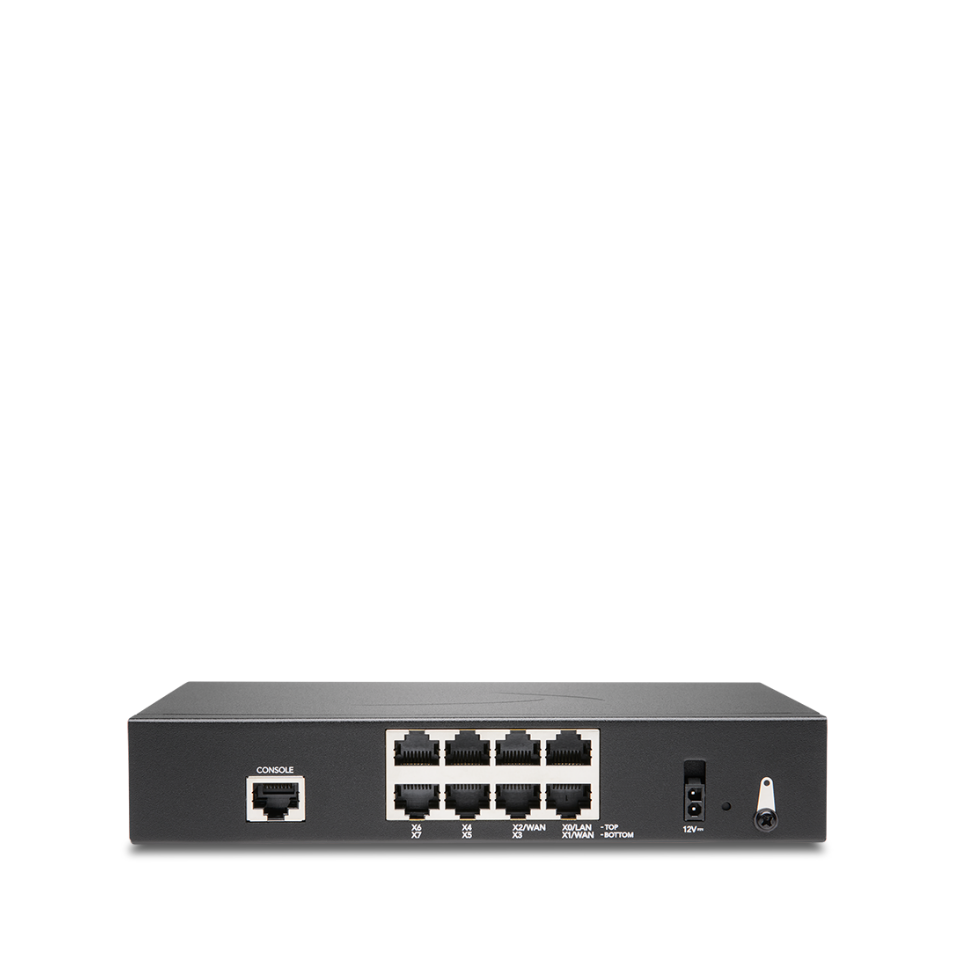

SonicWall TZ270 Appliance Rear
 Appliance
SonicWall TZ270 Appliance
SonicWall TZ270 Appliance Left
SonicWall TZ270 Appliance Right
SonicWall TZ270 Appliance Rear

SonicWall TZ270 High Availability

Must be paired with a regular SonicWall TZ270 Firewall
SKU: 02-SSC-6447
£308.76
General
Operating systemSonicOS 7.0
Interfaces8x1GbE, 2 USB 3.0, 1 Console
Wireless support2x2 802.11ac Wave 2 (TZ270W only)
Power over Ethernet (PoE) supportN/A
Storage expansion slot (Bottom)Optional up to 256GB
ManagementNetwork Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Redundant power supplyN/A
Single Sign-On (SSO) Users1000
VLAN interfaces64
Access points supported (maximum)16
Firewall/VPN Performance
Firewall inspection throughput2.0 Gbps
Threat Prevention throughput750 Mbps
Application inspection throughput1.0 Gbps
IPS throughput1.0 Gbps
Anti-malware inspection throughput750 Mbps
TLS/SSL decryption and inspection throughput (DPI SSL)300 Mbps
IPSec VPN throughput750 Mbps
Connections per second6000
Maximum connections (SPI)750 000
Maximum connections (DPI)150 000
Default/Maximum connections (DPI SSL)25 000
VPN
Site-to-site VPN tunnels50
IPSec VPN clients (maximum)5 (200)
SSL VPN licenses (maximum)1 (50)
Encryption/authenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10
NetExtenderMicrosoft® Windows 10, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10
Security Services (with subscription to EPSS or APSS)
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SS
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceSupported
Application VisualizationYes
Application ControlYes
Capture Advanced Threat ProtectionYes
DNS SecurityYes
Networking
IP address assignmentStatic, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database150
VoIPFull H.323v1-5, SIP
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
CertificationsFIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications pendingFIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Hardware
Form factorDesktop
Power supply36W External
Maximum power consumption (W)16.84 (TZ270), 18.91 (TZ270W)
Input power100 - 240 VAC, 50-60 Hz, 3A
Total heat dissipation57.42 (TZ270), 64.48 (TZ270W)
Dimensions3.5 x 13.5 x 19 (cm)
1.8 x 5.3 x 7.5 (in)
Weight0.82 kg / 1.81 lbs (TZ270), 0.85 kg / 1.87 lbs (TZ270W)
WEEE weight1.18 kg / 2.6 lbs (TZ270), 1.24 kg / 2.73 lbs (TZ270W)
Shipping weight1.41 kg / 3.11 lbs (TZ270), 1.47 kg / 3.25 lbs (TZ270W)
MTBF (years)51.1 (TZ270), 27.1 (TZ270W)
Environment (Operating/Storage)32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity5-95% non-condensing
Regulatory
Major regulatory compliance (wired models)FCC ClassB, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, KCC/MSI
Major regulatory compliance (wireless models)FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL6
*
*
*
