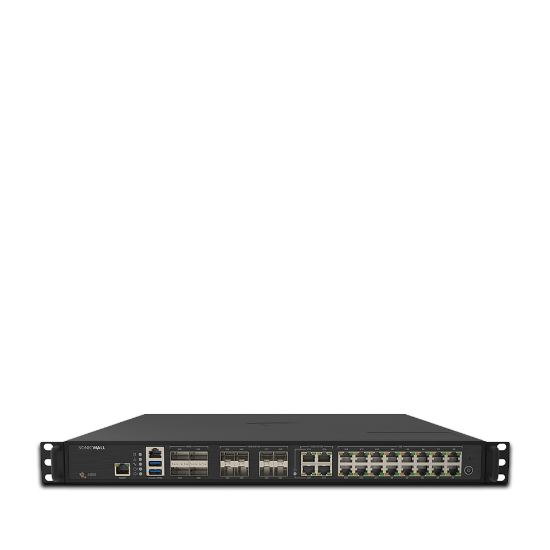

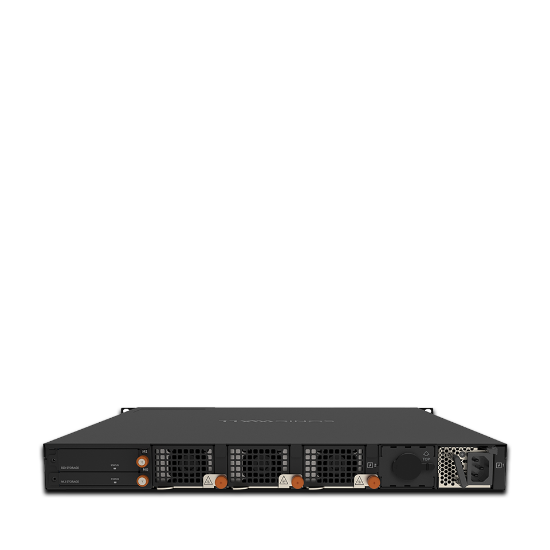

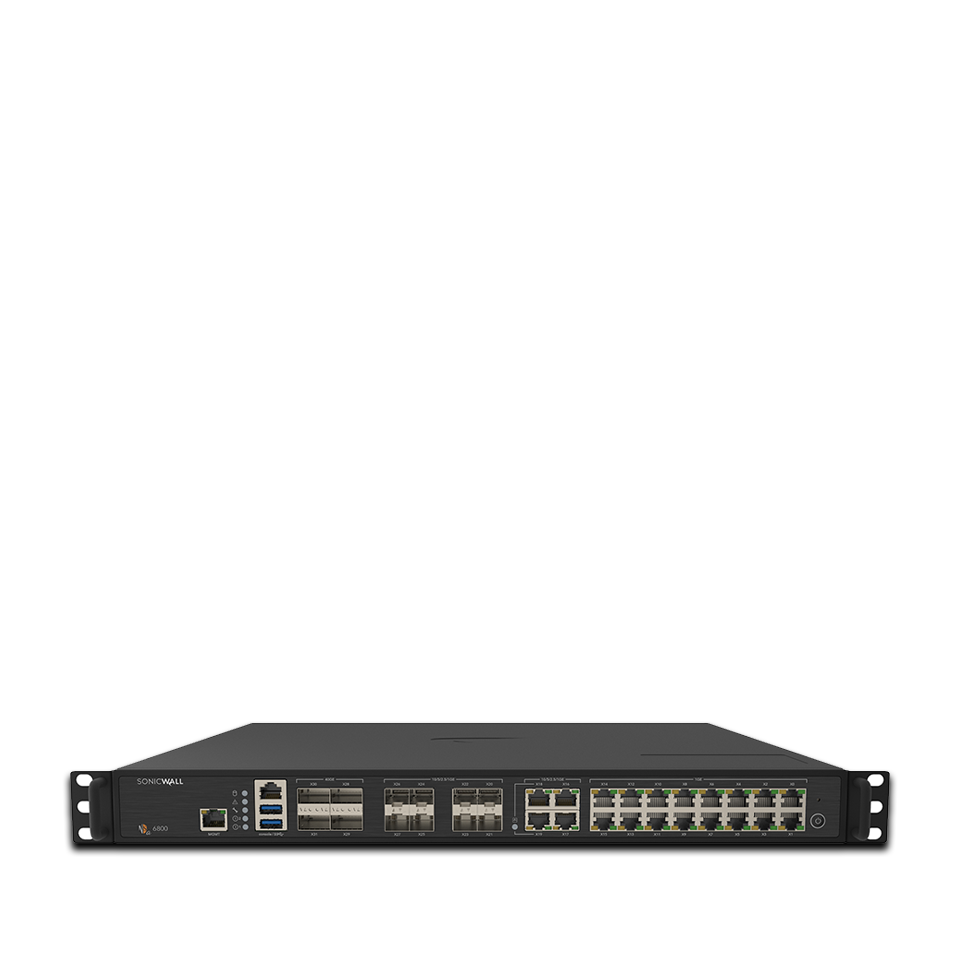

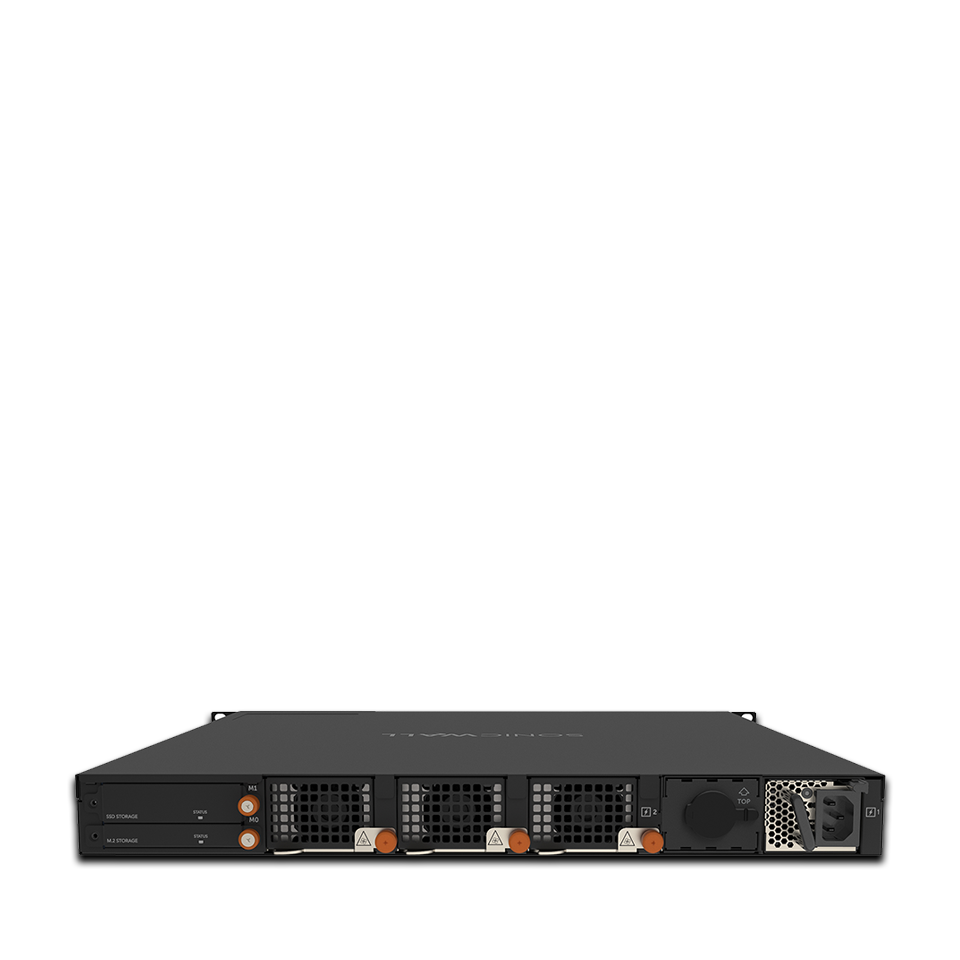

SonicWall NSa 6800 TotalSecure Advanced Edition

SonicWall NSa 6800 Appliance with 1 year of Advanced Protection Security Suite (APSS), including Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 Support with firmware updates And Cloud Management with 7-Day Alerting, Advanced Reporting & Analytics.
SKU: 03-SSC-7999
£49,224.55
£36,544.31
(not including discount)

The SonicWall Network Security Appliance (NSa) 6800 next-generation firewall (NGFW) offers medium to large sized enterprises industry-leading performance at the lowest total cost of ownership in its class.

The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.

Gen 8 NSa Series, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy.

Highlights:
  1. 1 RU – form factor
  2. 4 x 40 GbE interfaces (QSFP)
  3. 4 x 10 / 5 / 2.5 / 1 GbE interfaces
  4. 8 x 10 / 5 / 2.5 / 1 GbE interfaces (SFP+)
  5. 16 x 1 GbE interfaces
  6. Redundant power supply
  7. Multi-gigabit threat and malware analysis throughput
  8. Superior TLS performance (sessions and throughput)
  9. Latest generation 8 SonicOS support
  10. Secure SD-WAN capability
  11. Intuitive single pane of glass management available via SaaS or on-premise
  12. TLS 1.3 support
  13. Best-in-class price-performance
  14. Fast DPI performance
  15. Low TCO in its class
  16. High port density for easy networking
  17. Embedded warranty from Cysurance included with Advanced (APSS) and Managed (MPSS) service suites
Looking for the best price for an
NSa 6800?
That's our job!

We work directly with SonicWall HQ to make sure you always get the best possible quote.

And don't forget the additional
10% education discount (where applicable).

Email us

sales@sonicwallsecurity.co.uk

Call us

+44 (0)20 8589 7840

Download

 SonicWall NSa Generation 8 Datasheet

 Gen 8 Architecture Datasheet

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterprise level workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency. The NSa Series supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliances provide a single-pane-of-glass interface to manage both switches and access points.



Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall’s advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.



Advanced Protection Service Suite

Complete network security, content filtering, application control, CaptureATP, gateway anti-virus, anti-spam, 24x7 support with hardware warranty, cloud management and reporting in a single integrated package.

The SonicOS architecture is at the core of SonicWall physical and virtual firewalls including the TZ, NSa, NSv and NSsp Series. SonicOS leverages our patented, single-pass, lowlatency, Reassembly-Free Deep Packet Inspection® (RFDPI) and patent-pending Real-Time Deep Memory Inspection™ (RTDMI) technologies to deliver industry-validated high security effectiveness, SD-WAN, real-time visualization, high-speed virtual private networking (VPN) and other robust security features.

Through a combination of cloud-based and on-box technologies we deliver protection to our firewalls that’s been validated by independent third party testing for its extremely high security effectiveness. Unknown threats are sent to SonicWall’s cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our RTDMI™ technology. The RTDMI engine detects and blocks malware and zero-day threats by inspecting directly in memory. RTDMI technology is precise, minimizes false positives, and identifies and mitigates sophisticated attacks where the malware’s weaponry is exposed for less than 100 nanoseconds.

At a Glance
  1. Complete network security solution
    All service licences included.
  2. Capture ATP
    Multi-engine network sandbox to prevent zero-day threats. See Capture Advanced Threat Protection Service (CATPS).
  3. Gateway anti-virus and anti-spyware protection
    Including DPI-SSL and RFDPI.
  4. Cutting-edge IPS technology
    Protects against worms, trojans, software vulnerabilities and other intrusions by scanning all network traffic for malicious or anomalous patterns.
  5. Application intelligence and control
    Set of granular, application-specific policies providing application classification and policy enforcement to help administrators control and manage both business and non-business related applications.
  6. Content filtering
    Enforce internet use policies and control internal access to inappropriate, unproductive and potentially illegal web content with comprehensive content filtering. See Content Filtering Service (CFS).
  7. Network Topology View
    Display hosts, access-points in the network based on device name, mac address and IP Address.
  8. 24x7 support with firmware updates and hardware replacement
    Including firmware updates and hardware replacement protects your business and your SonicWall investment.
  9. Management and reporting
    Manage and view reports on firewalls via cloud through Network Security Manager tile of Capture Security Center. See Capture Security Centre (CSC).
Firewall General
Operating system SonicOS 8.0
Interfaces 4x 40G QSFP, 4 x 10/5/2.5/1G, 8 x 10/5/2.5/1G SFP/SFP+, 16 x 1GbE, 2x USB (type-A)
Expansion (TB) 1
Storage (GB) 512
VLAN Interfaces 512
SAML Single Sign-On Users 70000
Access points supported (maximum) 512
Firewall/VPN Performance
Firewall inspection throughput 55 Gbps
Threat Prevention throughput 40 Gbps
Application inspection throughput 40 Gbps
IPS throughput 40 Gbps
Anti-malware inspection throughput 40 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL) 10.5 Gbps
IPSec VPN throughput 27 Gbps
Connections per second 280000
Maximum SPI connections 20 000 000
Maximum DPI connections 15 000 000
Maximum TLS connections 1 500 000
VPN
Site-to-site tunnels  6000
SSL VPN licenses (max) 2 (1500)
IPSec VPN clients (max) 2000 (6000)
Encryption/Authentication AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows 10 and Windows 11
NetExtender Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect Apple® iOS, Mac OS X, Google® Android™
Security Services (APSS or suitable subscription required)
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS) Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control  Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment SLDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal
user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 3200
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pending IPv6/USGv6
High availability Active/Passive with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Power supply (W) 450
Maximum power consumption (W) 201.7
Input power 100-240 VAC, 50-60 Hz
Total heat dissipation 461.32 BTU
Dimensions 43 x 46 x 4.5 (cm)
Shipping 69.5 x 59.5 x 21 (cm)
Weight 7.4 kg
WEEE weight 9.3 kg
Shipping weight 13.2 kg
Major regulatory FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class A, KCC/MSIP, BSMI, MTCTE/TEC, CB
