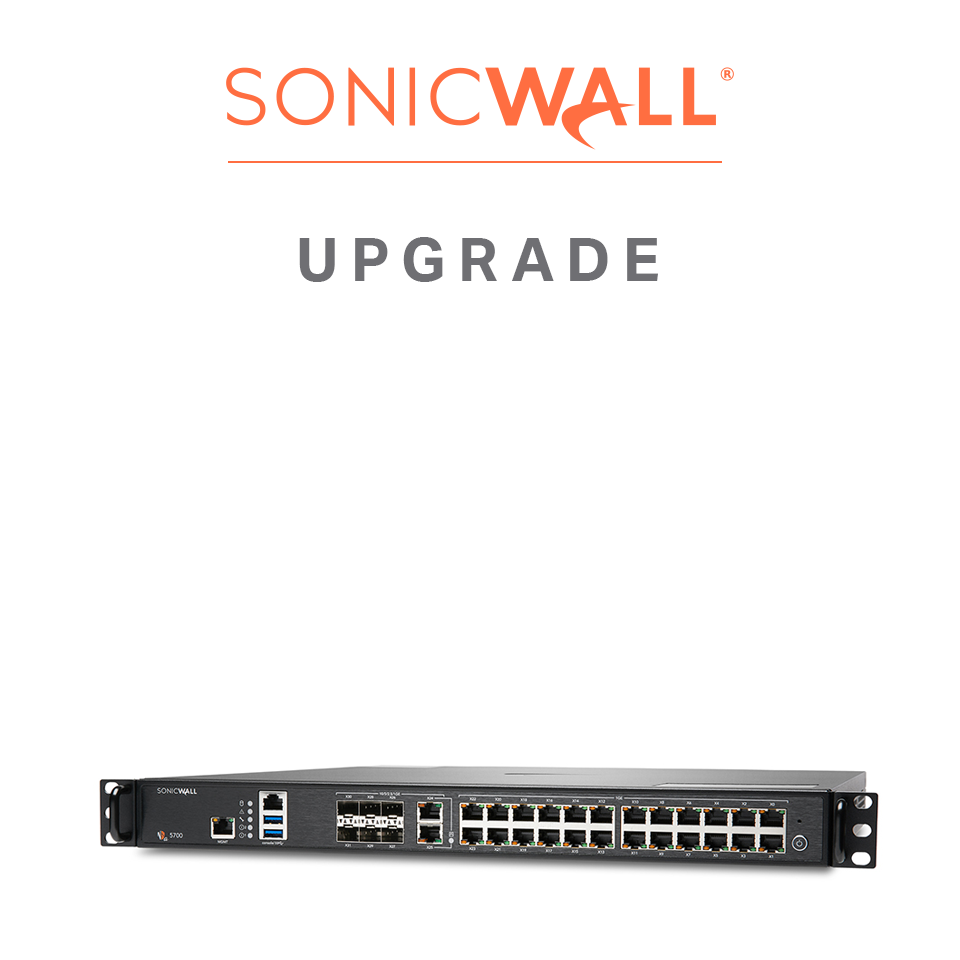

Picture of SonicWall NSa 5700 Secure Upgrade Plus Advanced Edition 3 year (includes 1 year CSE)
Appliance
Max Protection
Reporting

SonicWall NSa 5700 Secure Upgrade Plus Advanced Edition 3 year (includes 1 year CSE)

SonicWall NSa 5700 hardware with 3 year Advanced Protection Service Suite (APSS) and 1 year CSE. APSS includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 Support with firmware updates and cloud management with 7-day alerting, advanced reporting & analytics, Cloud Secure Edge for 1 year SIA - basic (50 user) and 1 year SPA - advanced (15 user)
SKU: 03-SSC-2984
£24,301.07
£18,284.12
(not including discount)
Firewall General
Operating system SonicOS 7.0.1
Interfaces 6 x10G/5G/2.5/1G SFP+, 2 x 10G/5G/2.5G/1G (Cu), 16 x 1GbE (Cu), 2 USB 3.0, 1 Console, 1 Mgmt. port
Expansion Storage Expansion Slot (Up to 1TB)
Storage 128GB
VLAN Interfaces 512
Access points supported (maximum) 512
Firewall/VPN Performance
Firewall inspection throughput 28 Gbps
Threat Prevention throughput 15 Gbps
Application inspection throughput 18 Gbps
IPS throughput 17 Gbps
Anti-malware inspection throughput 16 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL) 7 Gbps
IPSec VPN throughput 15 Gbps
Connections per second 228 000
Maximum Connections (SPI) 5 000 000
Maximum DPI-SSL Connections 350 000
Maximum connections (DPI) 3 500 000
VPN
Site-to-site tunnels  6000
SSL VPN licenses (max) 2 (1500)
IPSec VPN clients (max) 2000 (4000)
Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Security Services
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control  Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 3200
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pending FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
High availability Active/Active with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Power supply (W) 1x350W
Maximum power consumption (W) 128.1
Input power 100-240 VAC, 50-60 Hz
Total heat dissipation 436.82 BTU
Dimensions 43 x 46.5 x 4.5 (cm) 16.9 x 18.1 x 1.8 in
Weight 7.8 kg
WEEE weight 9.6 kg
Shipping weight 13.5 kg
Major regulatory FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI
Environment (Operating/Storage) 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity 0-90% non-condensing
Advanced Protection Service Suite
Complete network security, content filtering, application control, CaptureATP, gateway anti-virus, anti-spam, 24x7 support, cloud management and reporting in a single integrated package.

The SonicOS architecture is at the core of SonicWall physical and virtual firewalls including the TZ, NSa, NSv and NSsp Series. SonicOS leverages our patented, single-pass, lowlatency, Reassembly-Free Deep Packet Inspection® (RFDPI) and patent-pending Real-Time Deep Memory Inspection™ (RTDMI) technologies to deliver industry-validated high security effectiveness, SD-WAN, real-time visualization, high-speed virtual private networking (VPN) and other robust security features.

Through a combination of cloud-based and on-box technologies we deliver protection to our firewalls that’s been validated by independent third party testing for its extremely high security effectiveness. Unknown threats are sent to SonicWall’s cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our RTDMI™ technology. The RTDMI engine detects and blocks malware and zero-day threats by inspecting directly in memory. RTDMI technology is precise, minimizes false positives, and identifies and mitigates sophisticated attacks where the malware’s weaponry is exposed for less than 100 nanoseconds.

At a Glance
  1. Complete network security solution
    All service licences included.
  2. Capture ATP
    Multi-engine network sandbox to prevent zero-day threats. See Capture Advanced Threat Protection Service (CATPS).
  3. Gateway anti-virus and anti-spyware protection
    Including DPI-SSL and RFDPI.
  4. Cutting-edge IPS technology
    Protects against worms, trojans, software vulnerabilities and other intrusions by scanning all network traffic for malicious or anomalous patterns.
  5. Application intelligence and control
    Set of granular, application-specific policies providing application classification and policy enforcement to help administrators control and manage both business and non-business related applications.
  6. Content filtering
    Enforce internet use policies and control internal access to inappropriate, unproductive and potentially illegal web content with comprehensive content filtering. See Content Filtering Service (CFS).
  7. Network Topology View
    Display hosts, access-points in the network based on device name, mac address and IP Address.
  8. 24x7 support with firmware updates and hardware replacement
    Including firmware updates and hardware replacement protects your business and your SonicWall investment.
  9. Management and reporting
    Manage and view reports on firewalls via cloud through Network Security Manager tile of Capture Security Center. See Capture Security Centre (CSC).
