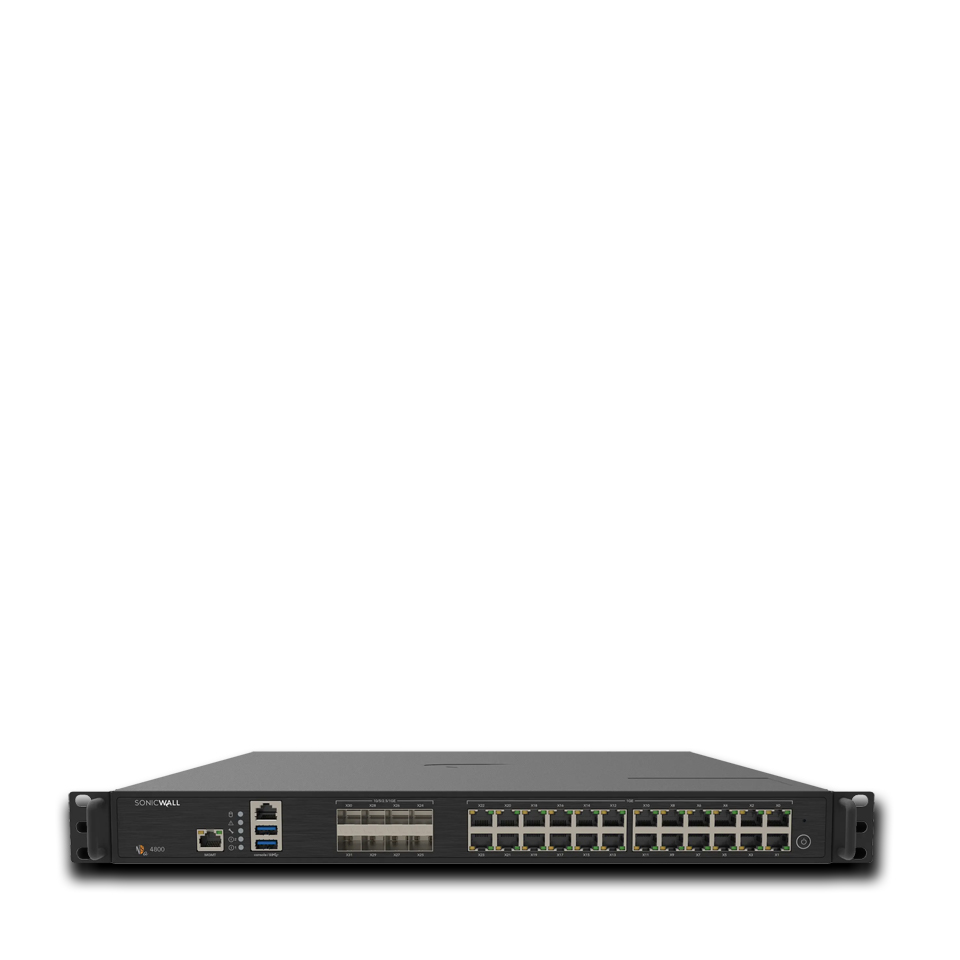

Picture of SonicWall NSa 4800 TotalSecure Advanced Edition
Appliance
Max Protection
Reporting

SonicWall NSa 4800 TotalSecure Advanced Edition

SonicWall NSa 4800 hardware with 1 year Advanced Protection Service Suite (APSS) including Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware updates and cloud management with 7-day alerting, advanced reporting & analytics.
SKU: 03-SSC-7023
£14,144.74
£10,642.50
(not including discount)
Firewall General
Operating system SonicOS 8.0
Interfaces 24x1GbE, 8x10G SFP+, 1 console (RJ45 to DB9), 2 USB (USB type-A)
Expansion (TB) 1
Storage (GB) 256
VLAN Interfaces 512
SAML Single Sign-On Users 50000
Access points supported (maximum) 512
Firewall/VPN Performance
Firewall inspection throughput 20 Gbps
Threat Prevention throughput 13 Gbps
Application inspection throughput 13 Gbps
IPS throughput 13 Gbps
Anti-malware inspection throughput 13 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL) 4.2 Gbps
IPSec VPN throughput 10 Gbps
Connections per second 140000
Maximum SPI connections 6000000
Maximum DPI connections 3000000
Maximum TLS connections 600000
VPN
Site-to-site tunnels  4000
SSL VPN licenses (max) 2 (1000)
IPSec VPN clients (max) 500 (3000)
Encryption/Authentication AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows 10 and Windows 11
NetExtender Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect Apple® iOS, Mac OS X, Google® Android™
Security Services
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS) Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control  Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment SLDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal
user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 1000
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pending IPv6/USGv6
High availability Active/Passive with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Power supply (W) 450
Maximum power consumption (W) 110.4
Input power 100-240 VAC, 50-60 Hz
Total heat dissipation 377 BTU
Dimensions 43 x 46 x 4.5 (cm)
Shipping 69.5 x 59.5 x 21 (cm)
Weight 7.4 kg
WEEE weight 9.3 kg
Shipping weight 13.2 kg
Major regulatory FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class A, KCC/MSIP, BSMI, MTCTE/TEC, CB
Advanced Protection Service Suite
Complete network security, content filtering, application control, CaptureATP, gateway anti-virus, anti-spam, 24x7 support, cloud management and reporting in a single integrated package.

The SonicOS architecture is at the core of SonicWall physical and virtual firewalls including the TZ, NSa, NSv and NSsp Series. SonicOS leverages our patented, single-pass, lowlatency, Reassembly-Free Deep Packet Inspection® (RFDPI) and patent-pending Real-Time Deep Memory Inspection™ (RTDMI) technologies to deliver industry-validated high security effectiveness, SD-WAN, real-time visualization, high-speed virtual private networking (VPN) and other robust security features.

Through a combination of cloud-based and on-box technologies we deliver protection to our firewalls that’s been validated by independent third party testing for its extremely high security effectiveness. Unknown threats are sent to SonicWall’s cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our RTDMI™ technology. The RTDMI engine detects and blocks malware and zero-day threats by inspecting directly in memory. RTDMI technology is precise, minimizes false positives, and identifies and mitigates sophisticated attacks where the malware’s weaponry is exposed for less than 100 nanoseconds.

At a Glance
  1. Complete network security solution
    All service licences included.
  2. Capture ATP
    Multi-engine network sandbox to prevent zero-day threats. See Capture Advanced Threat Protection Service (CATPS).
  3. Gateway anti-virus and anti-spyware protection
    Including DPI-SSL and RFDPI.
  4. Cutting-edge IPS technology
    Protects against worms, trojans, software vulnerabilities and other intrusions by scanning all network traffic for malicious or anomalous patterns.
  5. Application intelligence and control
    Set of granular, application-specific policies providing application classification and policy enforcement to help administrators control and manage both business and non-business related applications.
  6. Content filtering
    Enforce internet use policies and control internal access to inappropriate, unproductive and potentially illegal web content with comprehensive content filtering. See Content Filtering Service (CFS).
  7. Network Topology View
    Display hosts, access-points in the network based on device name, mac address and IP Address.
  8. 24x7 support with firmware updates and hardware replacement
    Including firmware updates and hardware replacement protects your business and your SonicWall investment.
  9. Management and reporting
    Manage and view reports on firewalls via cloud through Network Security Manager tile of Capture Security Center. See Capture Security Centre (CSC).
