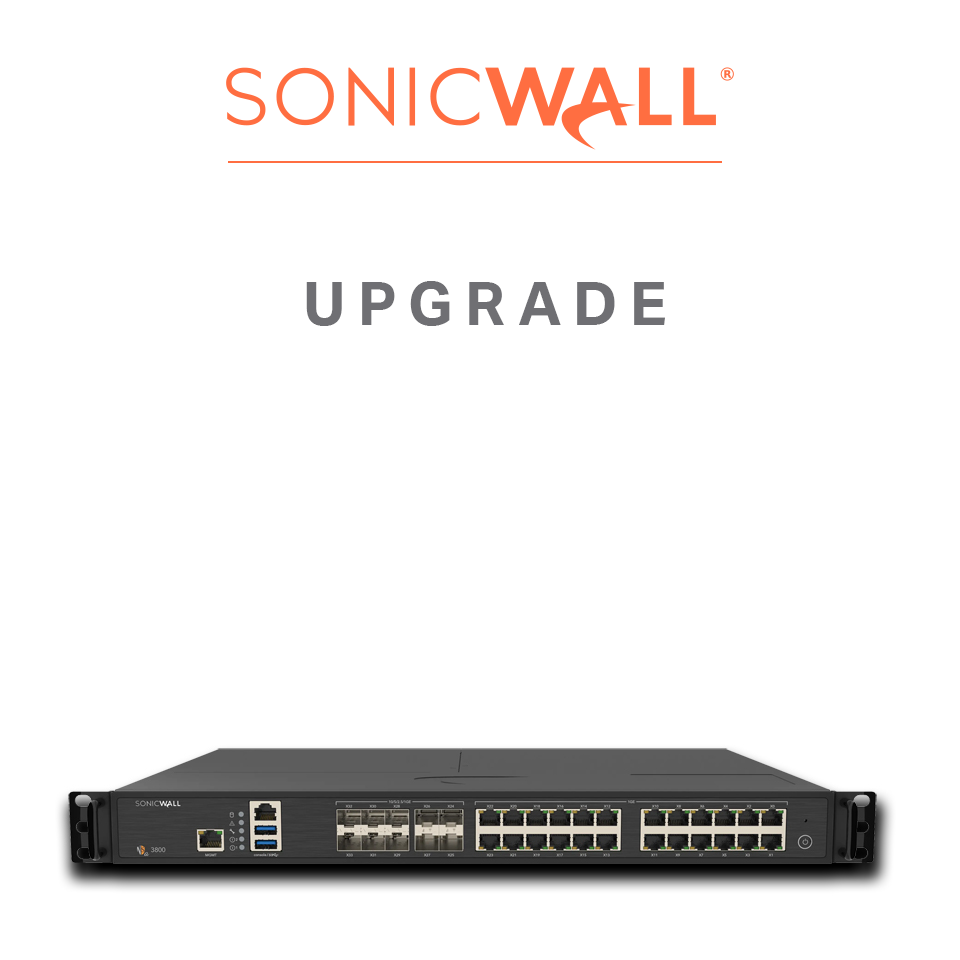

SonicWall NSa 3800 Secure Upgrade Plus Advanced Edition

SonicWall NSa 3800 appliance with a 2 year Advanced Protection Service Suite (APSS) subscription. APSS includes - Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, NSM Essential with Management & 7-Day Reporting and 24x7 Support with firmware.
SKU: 03-SSC-4657
£7,490.04
£5,416.80
(not including discount)
Firewall General
Operating systemSonicOS 8
Interfaces24x1GbE, 10x10G SFP+, 2 USB 3.0, 1 GbE Management, 1 Console
ExpansionStorage Expansion Slot (Up to 512GB)
Storage256GB M.2
VLAN Interfaces256
Access points supported (maximum)512
Firewall/VPN Performance
Firewall inspection throughput12.0 Gbps
Threat Prevention throughput8.0 Gbps
Application inspection throughput9.0 Gbps
IPS throughput8.0 Gbps
Anti-malware inspection throughput8.0 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)3.0 Gbps
IPSec VPN throughput8.0 Gbps
Connections per second90000
Maximum connections (DPI)1200000
VPN
Site-to-site tunnels3000
SSL VPN licenses (max)2 (500)
IPSec VPN clients (max)50 (1000)
Encryption/AuthenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10 and Windows 11
NetExtenderMicrosoft® Windows 10 and Windows 11, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™
Security Services
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceSupported
Application VisualizationYes (EPSS / APSS subscription)
Application ControlYes (EPSS / APSS subscription)
Capture Advanced Threat ProtectionYes (EPSS / APSS subscription)
DNS FilteringYes (EPSS / APSS subscription)
Networking
IP address assignmentStatic (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
Local user database1000
VoIPFull H323-v1-5, SIP
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pendingIPv6
High availabilityActive/Active with stateful synchronization
Hardware
Form factor1U Rack Mountable
Power supply (W)150
Maximum power consumption (W)102.3
Input power100-240 VAC, 50-60 Hz
Total heat dissipation341 BTU
Dimensions43 x 32.5 x 4.5 (cm)
Weight4.6 kg
WEEE weight4.8 kg
Shipping weight7.2 kg
Major regulatoryFCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI
Advanced Protection Service Suite
Complete network security, content filtering, application control, CaptureATP, gateway anti-virus, anti-spam, 24x7 support, cloud management and reporting in a single integrated package.

The SonicOS architecture is at the core of SonicWall physical and virtual firewalls including the TZ, NSa, NSv and NSsp Series. SonicOS leverages our patented, single-pass, lowlatency, Reassembly-Free Deep Packet Inspection® (RFDPI) and patent-pending Real-Time Deep Memory Inspection™ (RTDMI) technologies to deliver industry-validated high security effectiveness, SD-WAN, real-time visualization, high-speed virtual private networking (VPN) and other robust security features.

Through a combination of cloud-based and on-box technologies we deliver protection to our firewalls that’s been validated by independent third party testing for its extremely high security effectiveness. Unknown threats are sent to SonicWall’s cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our RTDMI™ technology. The RTDMI engine detects and blocks malware and zero-day threats by inspecting directly in memory. RTDMI technology is precise, minimizes false positives, and identifies and mitigates sophisticated attacks where the malware’s weaponry is exposed for less than 100 nanoseconds.

At a Glance
  1. Complete network security solution
    All service licences included.
  2. Capture ATP
    Multi-engine network sandbox to prevent zero-day threats. See Capture Advanced Threat Protection Service (CATPS).
  3. Gateway anti-virus and anti-spyware protection
    Including DPI-SSL and RFDPI.
  4. Cutting-edge IPS technology
    Protects against worms, trojans, software vulnerabilities and other intrusions by scanning all network traffic for malicious or anomalous patterns.
  5. Application intelligence and control
    Set of granular, application-specific policies providing application classification and policy enforcement to help administrators control and manage both business and non-business related applications.
  6. Content filtering
    Enforce internet use policies and control internal access to inappropriate, unproductive and potentially illegal web content with comprehensive content filtering. See Content Filtering Service (CFS).
  7. Network Topology View
    Display hosts, access-points in the network based on device name, mac address and IP Address.
  8. 24x7 support with firmware updates and hardware replacement
    Including firmware updates and hardware replacement protects your business and your SonicWall investment.
  9. Management and reporting
    Manage and view reports on firewalls via cloud through Network Security Manager tile of Capture Security Center. See Capture Security Centre (CSC).
*
*
*
