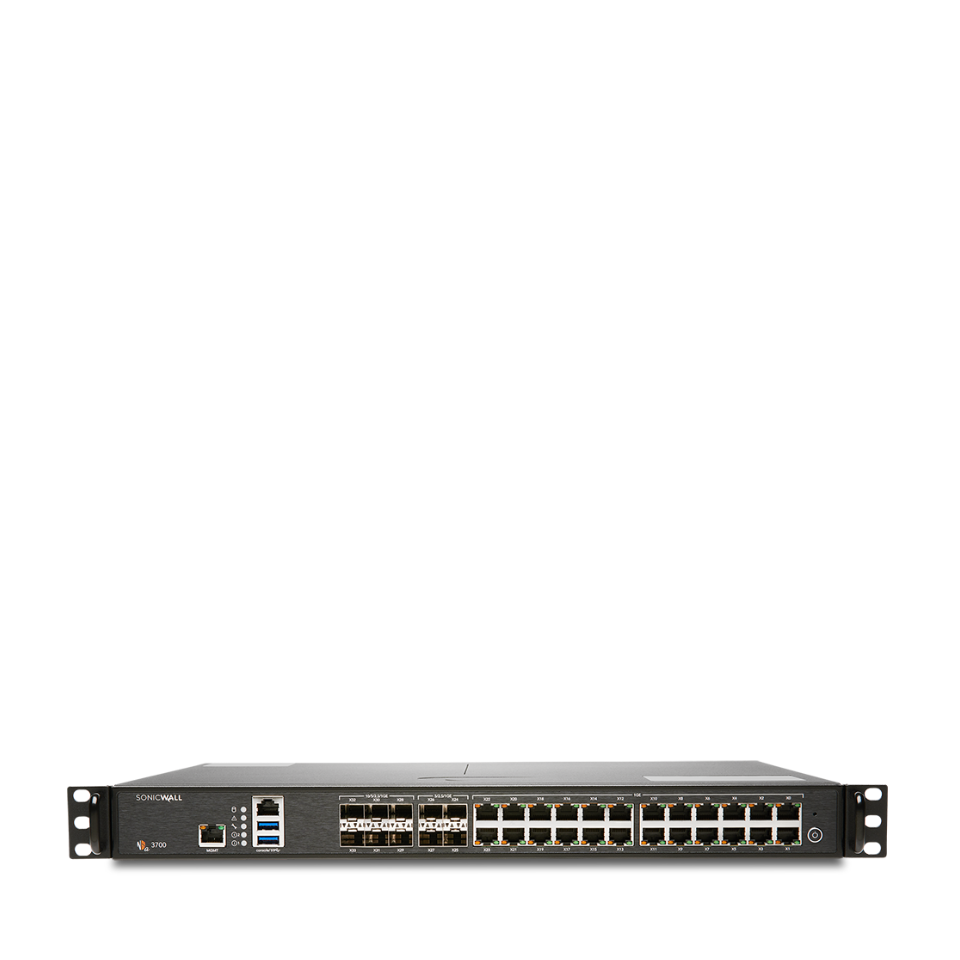

SonicWall NSa 3700 TotalSecure Advanced Edition

SonicWall NSa 3700 hardware with 1 year of Advanced Protection Service Suite (APSS) including Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware updates and cloud management with 7-day alerting, advanced reporting & analytics.
SKU: 02-SSC-8718
£6,436.39
£5,055.14

The SonicWall Network Security Appliance (NSa) 3700 next-generation firewall (NGFW) offers medium to large sized enterprises industry-leading performance at the lowest total cost of ownership in its class.

With comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering and IP reputation services, it protects the perimeter from advanced threats without becoming a bottleneck. The NSa 3700 has been built from the ground up with the latest hardware components, all designed to deliver multi-gigabit threat prevention throughput — even for encrypted traffic. Featuring a high port density (including 24 x 1GbE ports and 6 x 10G SFP+ ports), the solution supports network and hardware redundancy with high availability, clustering and dual power supplies.

Looking for the best price for an
NSa 3700 TotalSecure - Advanced Edition?
That's our job!

We work directly with SonicWall HQ to make sure you always get the best possible quote.

And don't forget the additional
10% education discount (where applicable).

Email us

contact@sonicwallsecurity.co.uk

Call us

+44 (0)20 8830 6820



Highlights:
  1. 1 RU – Form Factor
  2. 24 x 1 GbE interfaces
  3. 6 x 10 GbE interfaces
  4. Multi-gigabit Threat and Malware Analysis Throughput
  5. Enterprise Internet Edge Ready
  6. Latest Generation 7 SonicOS support
  7. Secure SD-WAN capability
  8. Intuitive single pane of glass management
  9. TLS 1.3 support
  10. Best-in-class price-performance
  11. Fast DPI performance
  12. Low TCO in its class
  13. High port density for easy networking
  14. Redundant power

The SonicWall NSa 3700 runs on SonicOS 7.0.1, a new operating system built from the ground up to deliver a modern user interface, intuitive workflows and user-first design principles. SonicOS 7.0 provides multiple features designed to facilitate enterprise-level workflows. It offers easy policy configuration, zero-touch deployment and flexible management — all of which allow enterprises to improve both their security and operational efficiency. The NSa 3700 supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 clustering and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-paneof-glass interface to manage both switches and access points. Built to mitigate the advanced cyberattacks of today and tomorrow, the NSa 3700 offers access to SonicWall’s premier advanced firewall security services, allowing you to protect your entire security infrastructure. Solutions and services such as Cloud Application Security, Capture Advanced Threat Protection (ATP) cloud-based sandboxing, Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) — along with Deep Packet Inspection (DPI) for all traffic including TLS 1.3 — offer comprehensive gateway protection from most stealthy and dangerous malware, including zeroday and encrypted threats.



Small to Medium Size Business
  1. Save space and money with an integrated gateway security solution with firewalling, switching and wireless capabilities
  2. Reduce complexity and get the business running without relying on IT personnel with easy onboarding using SonicExpress App and Zero-Touch Deployment, and easy management through a single pane of glass
  3. Attain business continuity by providing failover to cellular connectivity
  4. Protect network from attacks with a comprehensive security solution that incorporates VPN, IPS, CFS, AV and much more
  5. Boost employee productivity by blocking unauthorized access with traffic segmentation and access policies
Distributed Enterprise with SD-Branches
  1. Enhance customer experience and adapt to the changing business needs by enabling next-gen branch connectivity with SD-Branch
  2. Drive business growth by investing in next-gen appliances with multi-gigabit and advanced security features, to future-proof against the changing network and security landscape
  3. Secure networks from the most advanced attacks with advanced security features and automatically block threats on decrypted traffic using protocols such as TLS 1.3
  4. Leverage end-to-end network security with seamless integration of SonicWave access points, SonicWall Switches and Capture Client
  5. Ensure seamless communication as stores talk to HQ via easy VPN connectivity which allows IT administrators to create a hub and spoke configuration for the safe transport of data between all locations
  6. Improve business efficiency, performance and reduce costs by leveraging Gen 7 TZ's hardware and software enhancements, plus features such SD-WAN technology
  7. Scale quickly and effortlessly with SonicExpress App and Zero-Touch Deployment
  8. Ensure business continuity by providing failover to cellular connectivity
  9. Maintain compliance with security features, and leverage built-in and expandable storage to store logs for audit purposes
Diagram - SD Branch
Firewall General
Operating system SonicOS 7.0.1
Interfaces 24x1GbE, 6x10G SFP+, 4x5G SFP+, 2 USB 3.0, 1 Console, 1 Management port
Expansion Storage Expansion Slot (Up to 256GB)
Storage 128GB M.2
VLAN Interfaces 256
Access points supported (maximum) 32
Firewall/VPN Performance
Firewall inspection throughput 5.5 Gbps
Threat Prevention throughput 3.5 Gbps
Application inspection throughput 4.2 Gbps
IPS throughput 3.8 Gbps
Anti-malware inspection throughput 3.5 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL) 850 Mbps
IPSec VPN throughput 2.2 Gbps
Connections per second 22500
Maximum Connections (SPI) 2000000
Maximum DPI-SSL Connections 150000
Maximum connections (DPI) 750000
VPN
Site-to-site tunnels  3000
SSL VPN licenses (max) 2 (500)
IPSec VPN clients (max) 50 (1000)
Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Security Services
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control  Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 250
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pending FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
High availability Active/Active with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Power supply (W) 90
Maximum power consumption (W) 36.3
Input power 100-240 VAC, 50-60 Hz
Total heat dissipation 123.78 BTU
Dimensions 43 x 32.5 x 4.5 (cm) 16.9 x 12.8 x 1.8 in
Weight 4.6 kg / 10.2 lbs
WEEE weight 4.8 kg / 10.6 lbs
Shipping weight 7.0 kg / 15.4 lbs
Major regulatory FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI
Environment (Operating/Storage) 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity 5-95% non-condensing
Advanced Protection Service Suite
Complete network security, content filtering, application control, CaptureATP, gateway anti-virus, anti-spam, 24x7 support, cloud management and reporting in a single integrated package.

The SonicOS architecture is at the core of SonicWall physical and virtual firewalls including the TZ, NSa, NSv and NSsp Series. SonicOS leverages our patented, single-pass, lowlatency, Reassembly-Free Deep Packet Inspection® (RFDPI) and patent-pending Real-Time Deep Memory Inspection™ (RTDMI) technologies to deliver industry-validated high security effectiveness, SD-WAN, real-time visualization, high-speed virtual private networking (VPN) and other robust security features.

Through a combination of cloud-based and on-box technologies we deliver protection to our firewalls that’s been validated by independent third party testing for its extremely high security effectiveness. Unknown threats are sent to SonicWall’s cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our RTDMI™ technology. The RTDMI engine detects and blocks malware and zero-day threats by inspecting directly in memory. RTDMI technology is precise, minimizes false positives, and identifies and mitigates sophisticated attacks where the malware’s weaponry is exposed for less than 100 nanoseconds.

At a Glance
  1. Complete network security solution
    All service licences included.
  2. Capture ATP
    Multi-engine network sandbox to prevent zero-day threats. See Capture Advanced Threat Protection Service (CATPS).
  3. Gateway anti-virus and anti-spyware protection
    Including DPI-SSL and RFDPI.
  4. Cutting-edge IPS technology
    Protects against worms, trojans, software vulnerabilities and other intrusions by scanning all network traffic for malicious or anomalous patterns.
  5. Application intelligence and control
    Set of granular, application-specific policies providing application classification and policy enforcement to help administrators control and manage both business and non-business related applications.
  6. Content filtering
    Enforce internet use policies and control internal access to inappropriate, unproductive and potentially illegal web content with comprehensive content filtering. See Content Filtering Service (CFS).
  7. Network Topology View
    Display hosts, access-points in the network based on device name, mac address and IP Address.
  8. 24x7 support with firmware updates and hardware replacement
    Including firmware updates and hardware replacement protects your business and your SonicWall investment.
  9. Management and reporting
    Manage and view reports on firewalls via cloud through Network Security Manager tile of Capture Security Center. See Capture Security Centre (CSC).
