SonicWall NSSP 15700 High Availability

Call us
+44 (0)20 8830 6820

Appliance

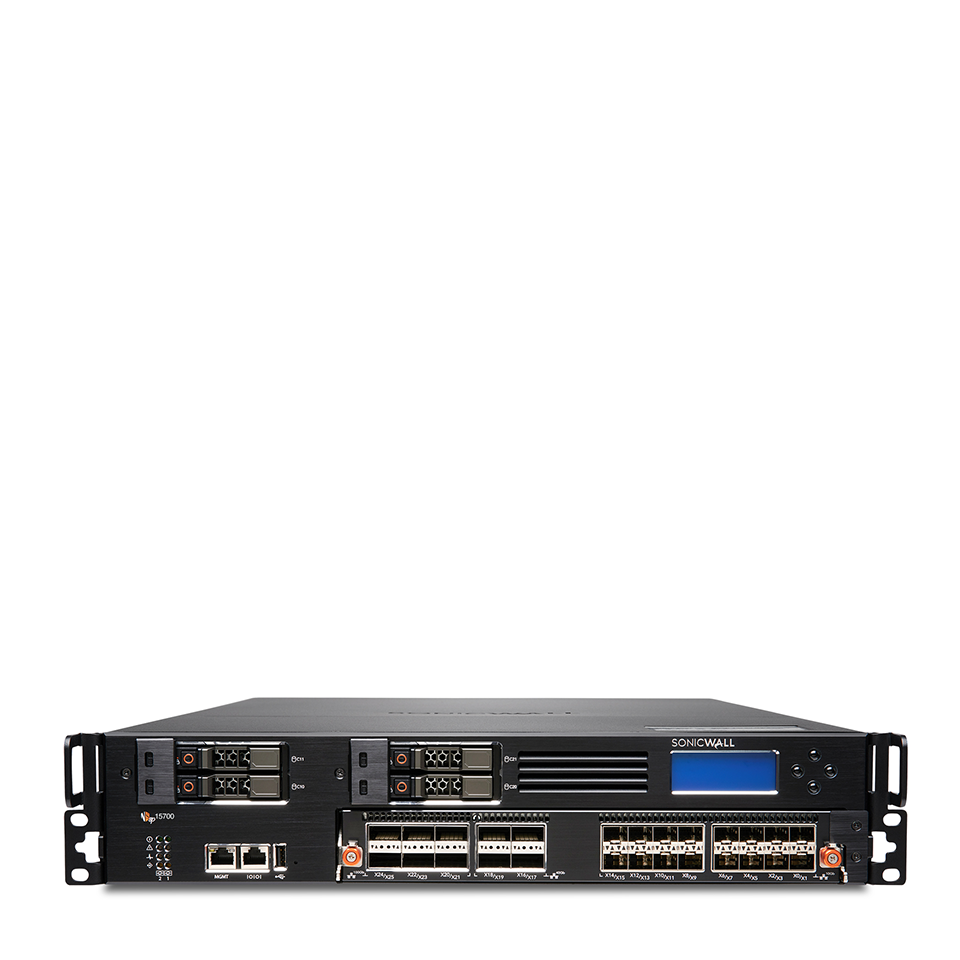

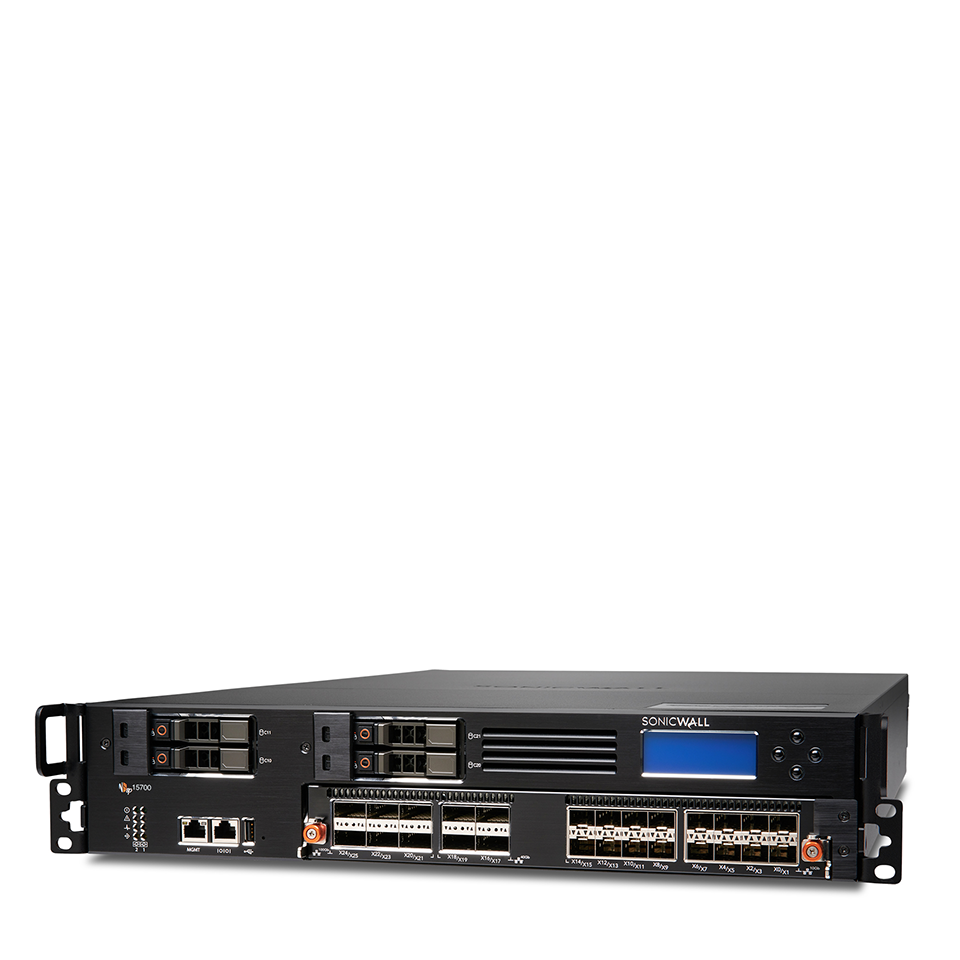

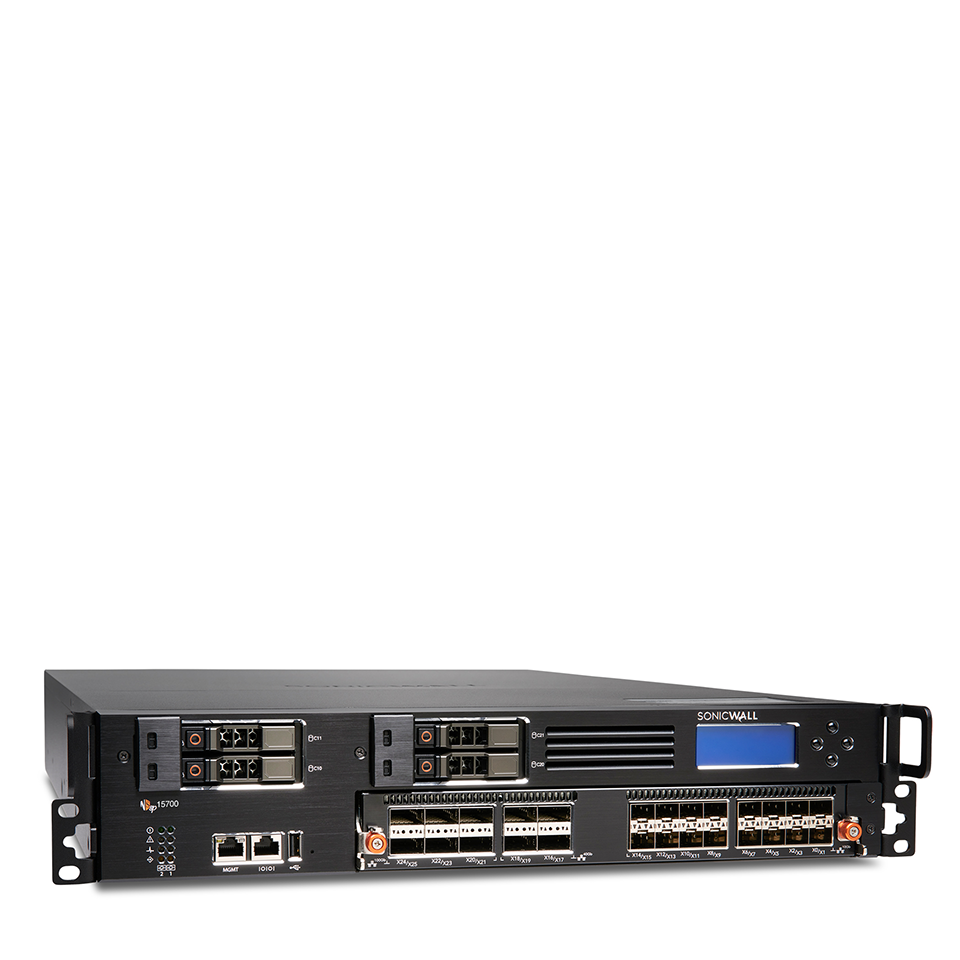

SonicWall NSsp 15700 High Availability

Must be paired with a regular SonicWall NSsp 15700 Firewall

SKU: 02-SSC-6000

£128,306.34

(not including discount)

We work directly with SonicWall HQ to make sure you always get the best possible quote.

And don't forget the additional
10% education discount (where applicable).

+44 (0)20 8830 6820

General
Operating system	SonicOS 7.0
Interfaces	6 x 100-GbE QSFP28, 4 x 40-GbE QSFP+, 16 x 10 GbE SFP+
Built in storage	2 x 480 GB SSD
Management	CLI, SSH, Web UI, REST APIs
Single Sign-On (SSO) Users	100 000
Logging	Analyzer, Local Log, Syslog, IPFIX, NetFlow

Firewall/VPN Performance
Firewall inspection throughput	105 Gbps
Threat Prevention throughput	82 Gbps
Application inspection throughput	86 Gbps
IPS throughput	76.5 Gbps
IMIX throughput	28.5 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)	21 Gbps
VPN throughput	32 Gbps
Connections per second	800000
Maximum connections (SPI)	80 000 000
Maximum connections (DPI)	50 000 000
Default/Maximum connections (DPI SSL)	3 000 000

VPN
Site-to-site VPN tunnels	25 000
IPSec VPN clients (maximum)	2000 (10000)
SSL VPN licenses (maximum)	2 (3000)
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported	Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
NetExtender	Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10

Networking
Max Tenants per Hardware	12
IP address Assignment	Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay
NAT modes	1:1, many:1, 1:many, flexible NAT (overlapping IP), PAT, transparent mode
VLAN interfaces	512
Wire Mode	Yes
Routing protocols	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication	LDAP, XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix
VoIP	Full H.323-v1-5, SIP
Standards	TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications	ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC
High availability	Active/Passive with State Sync, Active/Active DPI with State Sync, Active/Active Clustering

Hardware
Power supply	Dual, Redundant, 1,200W
Fans	10
Input power	100-240 VAC, 50-60 Hz
Maximum power consumption (W)	1065
Form factor	2U Rack Mountable
Dimensions	68.6 x 43.8 x 8.8 (cm)
Weight	26kg
WEEE weight	30.1kg
Shipping weight	37.3kg
Shipping Dimensions	28 x 63 x 86 (cm)
Major Regulatory	FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, ANATEL, BSMI
Environment (Operating/Storage)	32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity	10-95% non-condensing
