SonicWall NSsp 15700

This is the base SonicWall NSsp Appliance. No licenses or security services are included.
SKU: 02-SSC-2722
(not including discount)

Designed for large enterprise, higher education, government agencies and MSSPs, it eliminates attacks in real time without slowing performance.

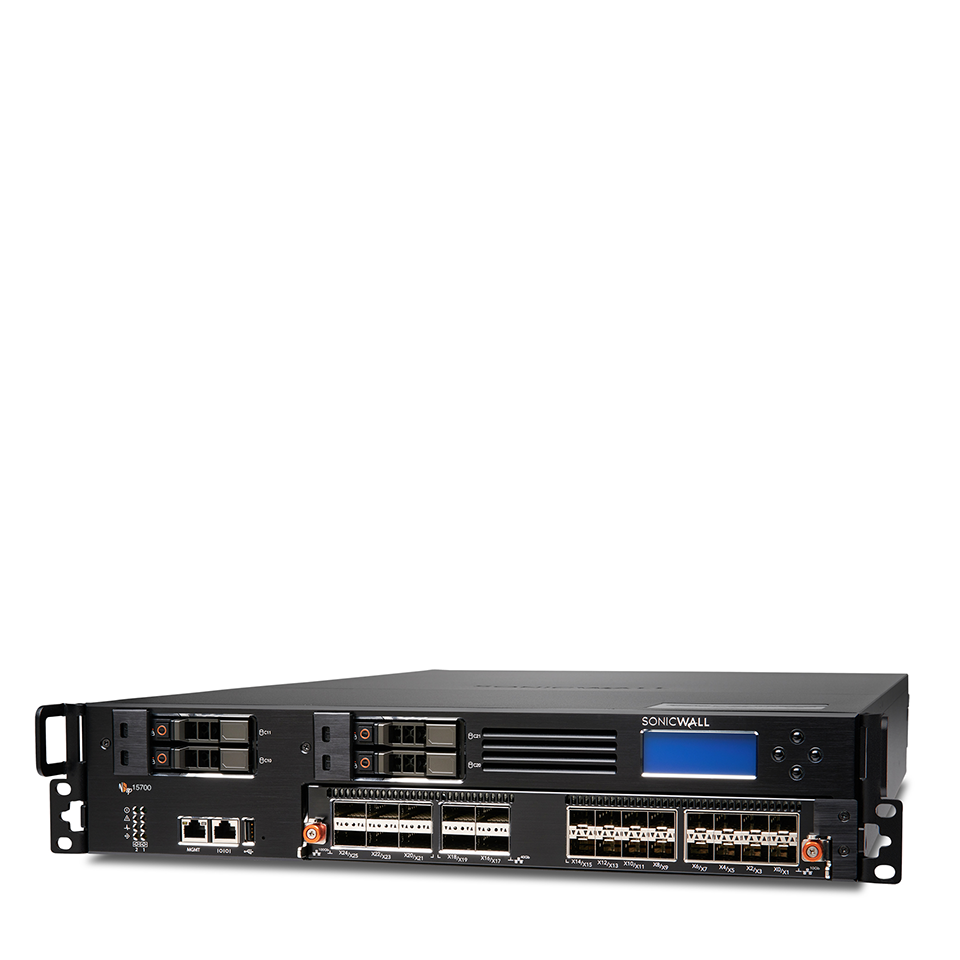

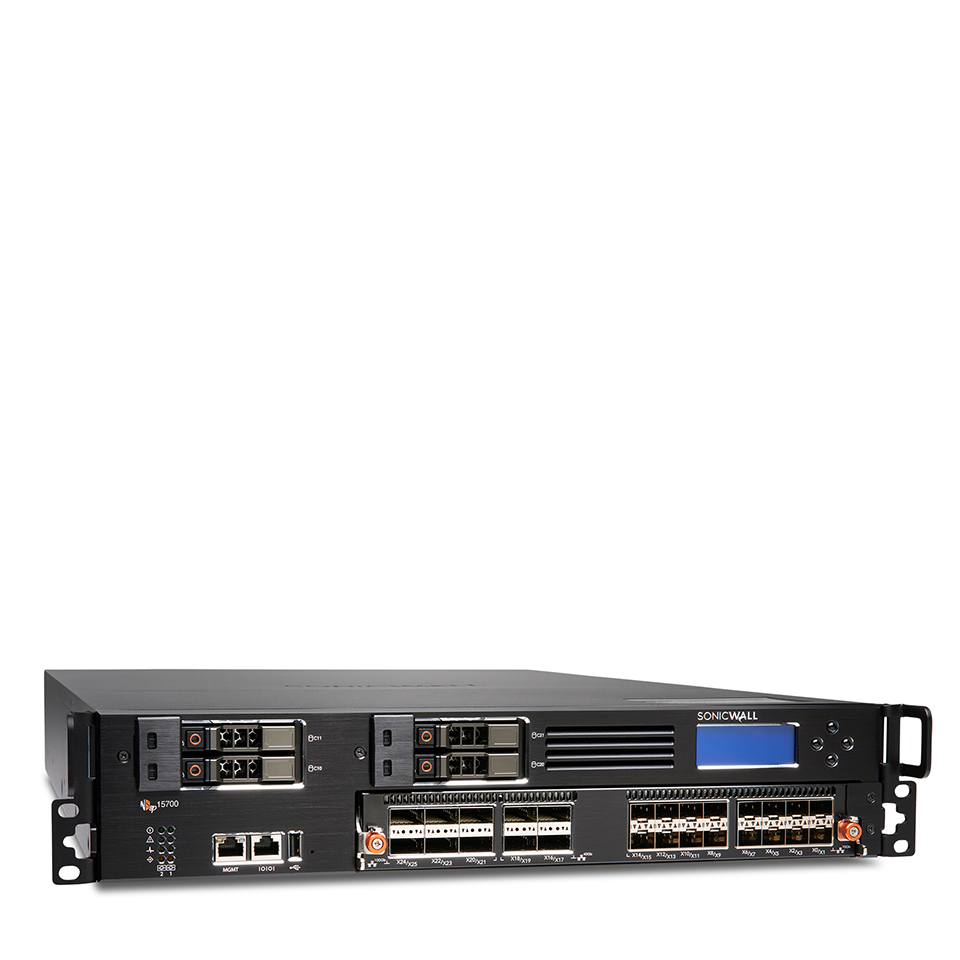

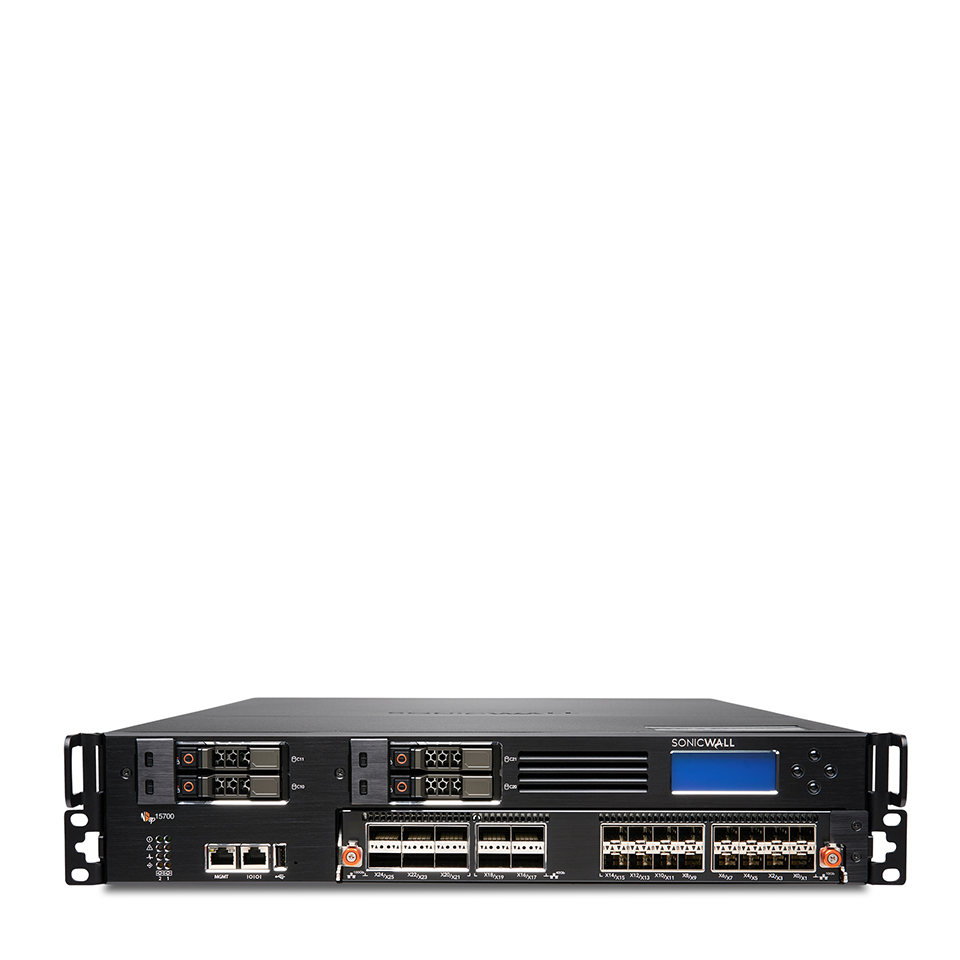

The SonicWall Network Security services platform™ (NSsp) 15700 is a next-generation firewall with high port density and multi-gig speed interfaces, that can process several million connections for zero-day (with Capture ATP) and advanced threats.

  1. High port density
  2. 100 GbE ports
  3. Multi-instance firewall
  4. Integrates with on-premise and cloud-based sandboxing
  5. Single-pane-of-glass-management through cloud or firewall
  6. Redundant power supply
  7. SonicOS 7.0
  8. TLS 1.3
  9. Supports millions of simultaneous TLS connections
  10. Low TCO

SonicWall NSsp 15700 Launch Video:


This is the base SonicWall NSsp 15700 Appliance. No licenses or security services are included. To include a full security services package (EPSS or APSS), please see

SonicWall NSsp 15700 TotalSecure - Essential Edition

Looking for the best price for an
NSsp 15700?
That's our job!

We work directly with SonicWall HQ to make sure you always get the best possible quote.

And don't forget the additional
10% education discount (where applicable).

Email us

Call us

+44 (0)20 8830 6820

As businesses evolve along with an increase in managed and unmanaged devices, networks, cloud workloads, SaaS applications, users, internet speeds, and encrypted connections, a firewall that can’t support any one of these becomes a bottleneck in the IT landscape. A firewall should be a source of strength and not a point of weakness.

The SonicWall NSsp 15700’s multiple 100G/40G/10G interfaces allow you to process several million simultaneous encrypted and unencrypted connections with unparallel threat prevention technology. With 70% of all sessions being encrypted, having a firewall that can process and examine this traffic without impacting the end user experience is critical to productivity and information security. The NSsp 15700’s unified policy interface enables organizations to simply and intuitively create access and security policies in a single unified interface.

Ongoing management, monitoring and reporting of network activities are handled through the SonicWall Network Security Manager. This provides an intuitive dashboard for managing firewall operations as well as provide historical reports – from a single source. Together, the simplified deployment and setup along with the ease of management enable organizations to lower their total cost of ownership and realize a high return on investment.

Operating systemSonicOS 7.0
Interfaces6 x 100-GbE QSFP28, 4 x 40-GbE QSFP+, 16 x 10 GbE SFP+
Built in storage2 x 480 GB SSD
ManagementCLI, SSH, Web UI, REST APIs
Single Sign-On (SSO) Users100 000
LoggingAnalyzer, Local Log, Syslog, IPFIX, NetFlow
Firewall/VPN Performance
Firewall inspection throughput105 Gbps
Threat Prevention throughput82 Gbps
Application inspection throughput86 Gbps
IPS throughput76.5 Gbps
IMIX throughput28.5 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)21 Gbps
VPN throughput32 Gbps
Connections per second800000
Maximum connections (SPI)80 000 000
Maximum connections (DPI)50 000 000
Default/Maximum connections (DPI SSL)3 000 000
Site-to-site VPN tunnels25 000
IPSec VPN clients (maximum)2000 (10000)
SSL VPN licenses (maximum)2 (3000)
Encryption/authenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
NetExtenderMicrosoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile ConnectApple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10
Max Tenants per Hardware12
IP address AssignmentStatic (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay
NAT modes1:1, many:1, 1:many, flexible NAT (overlapping IP), PAT, transparent mode
VLAN interfaces512
Wire ModeYes
Routing protocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
AuthenticationLDAP, XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix
VoIPFull H.323-v1-5, SIP
CertificationsICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC
High availabilityActive/Passive with State Sync, Active/Active DPI with State Sync, Active/Active Clustering

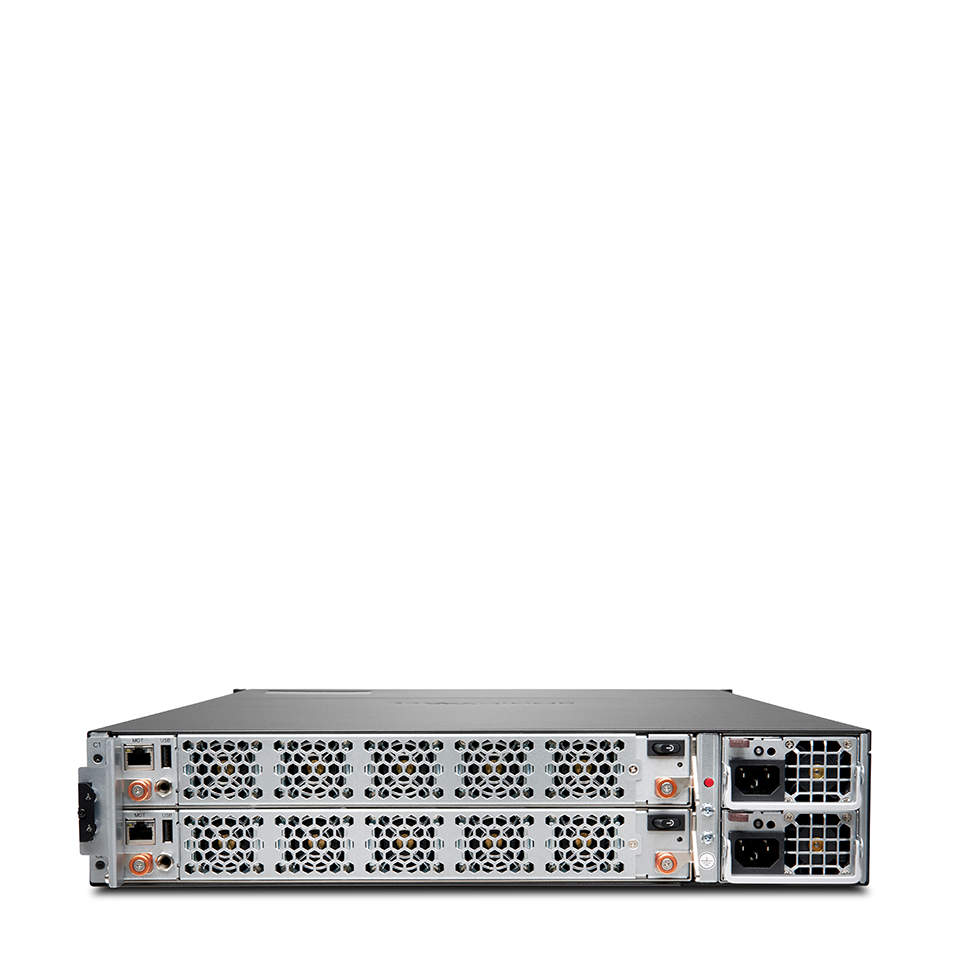

Power supplyDual, Redundant, 1,200W
Input power100-240 VAC, 50-60 Hz
Maximum power consumption (W)1065
Form factor2U Rack Mountable
Dimensions68.6 x 43.8 x 8.8 (cm)
WEEE weight30.1kg
Shipping weight37.3kg
Shipping Dimensions28 x 63 x 86 (cm)
Major RegulatoryFCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, ANATEL, BSMI
Environment (Operating/Storage)32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity10-95% non-condensing
