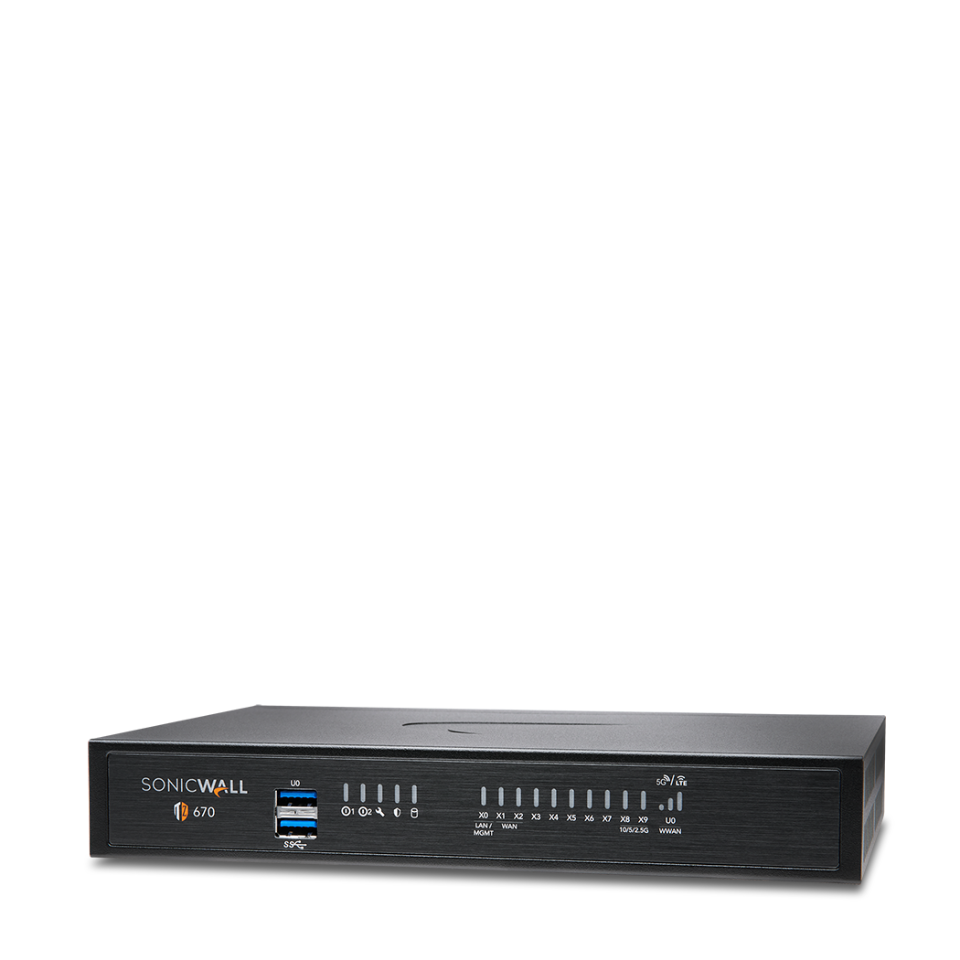

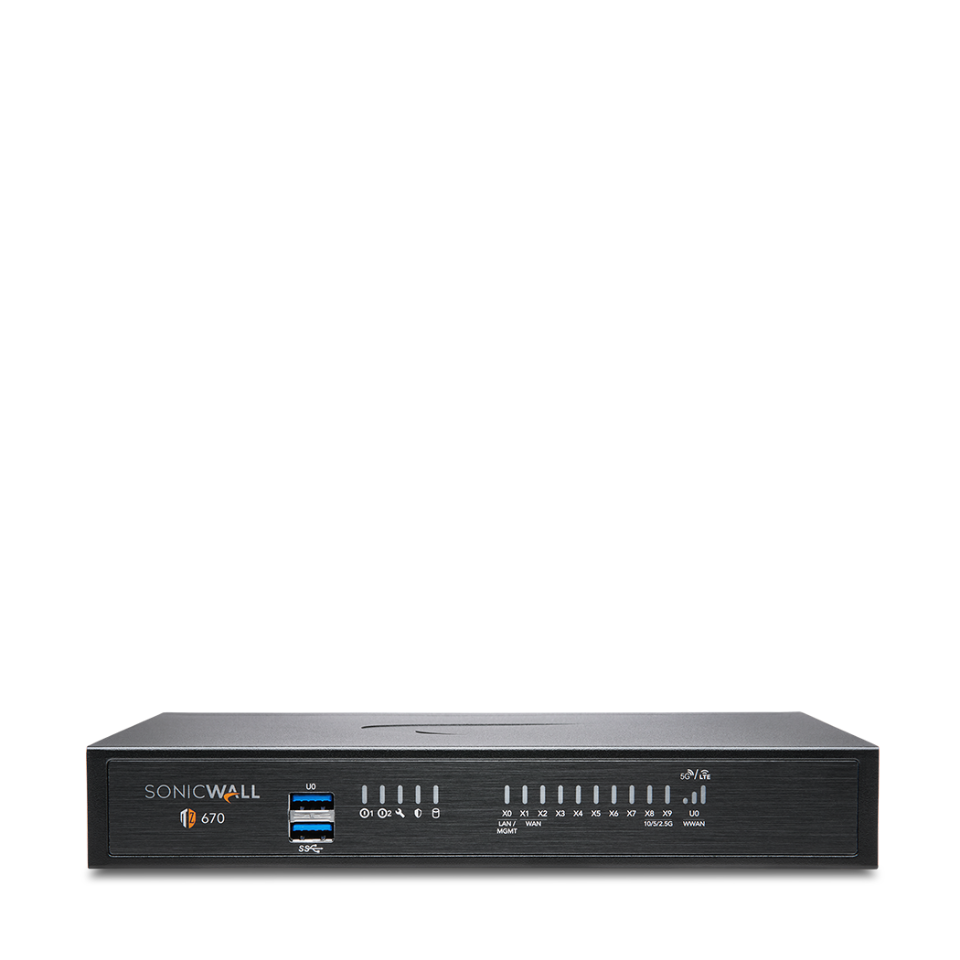

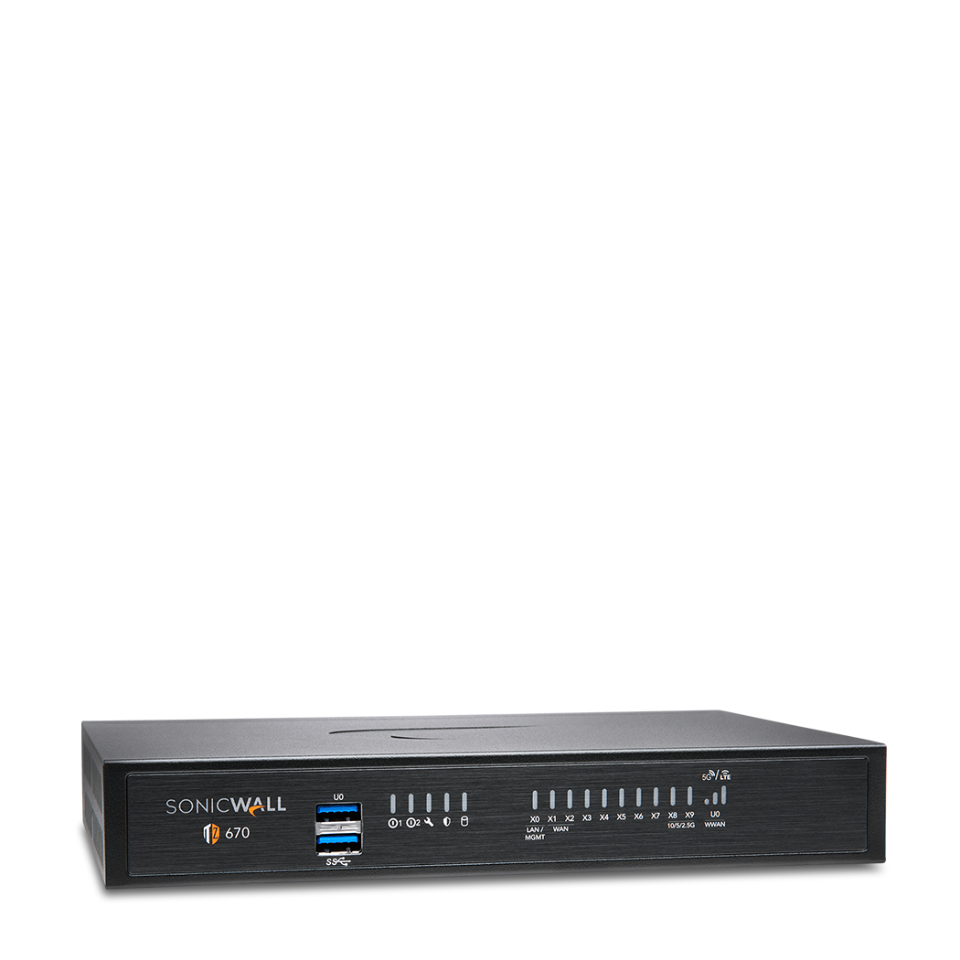

SonicWall TZ670 High Availability

Must be paired with a regular SonicWall TZ670 Firewall
SKU: 02-SSC-5654
£1,144.88
Small to Medium Size Business
  1. Save space and money with an integrated gateway security solution with firewalling, switching and wireless capabilities
  2. Reduce complexity and get the business running without relying on IT personnel with easy onboarding using SonicExpress App and Zero-Touch Deployment, and easy management through a single pane of glass
  3. Attain business continuity by providing failover to cellular connectivity
  4. Protect network from attacks with a comprehensive security solution that incorporates VPN, IPS, CFS, AV and much more
  5. Boost employee productivity by blocking unauthorized access with traffic segmentation and access policies
Distributed Enterprise with SD-Branches
  1. Enhance customer experience and adapt to the changing business needs by enabling next-gen branch connectivity with SD-Branch
  2. Drive business growth by investing in next-gen appliances with multi-gigabit and advanced security features, to future-proof against the changing network and security landscape
  3. Secure networks from the most advanced attacks with advanced security features and automatically block threats on decrypted traffic using protocols such as TLS 1.3
  4. Leverage end-to-end network security with seamless integration of SonicWave access points, SonicWall Switches and Capture Client
  5. Ensure seamless communication as stores talk to HQ via easy VPN connectivity which allows IT administrators to create a hub and spoke configuration for the safe transport of data between all locations
  6. Improve business efficiency, performance and reduce costs by leveraging Gen 7 TZ's hardware and software enhancements, plus features such SD-WAN technology
  7. Scale quickly and effortlessly with SonicExpress App and Zero-Touch Deployment
  8. Ensure business continuity by providing failover to cellular connectivity
  9. Maintain compliance with security features, and leverage built-in and expandable storage to store logs for audit purposes
Diagram - SD Branch
General
Operating systemSonicOS 7.0
Interfaces8x1GbE, 2x10GbE, 2 USB 3.0, 1 Console
ExpansionStorage Expansion Slot (Up to 256GB, with 32 GB included)
ManagementNetwork Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Single Sign-On (SSO) Users2500
VLAN interfaces256
Access points supported (maximum)32
Firewall/VPN Performance
Firewall inspection throughput5.0 Gbps
Threat Prevention throughput2.5 Gbps
Application inspection throughput3.0 Gbps
IPS throughput3.0 Gbps
Anti-malware inspection throughput2.5 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)800 Mbps
VPN throughput2.1 Gbps
Connections per second25000
Maximum connections (SPI)1 500 000
Maximum connections (DPI)500 000
Default/Maximum connections (DPI SSL)30 000
VPN
Site-to-site VPN tunnels250
IPSec VPN clients (maximum)10 (500)
SSL VPN licenses (maximum)2 (250)
Encryption/authenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-toSonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10
NetExtenderMicrosoft® Windows 10, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Microsoft® Windows 10
Security Services
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceYes
Application VisualizationYes
Application ControlYes
Capture Advanced Threat ProtectionYes
DNS SecurityYes
Networking
IP address assignmentStatic, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database250
VoIPFull H.323v1-5, SIP
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
CertificationsFIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications pendingFIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Hardware
Form factorDesktop
Power supply60W
Maximum power consumption (W)13.1
Input power100 to 240 VAC, 50-60 Hz
Total heat dissipation55.1 BTU
Dimensions3.5 x 15 x 22.5 cm
1.38 x 5.91 x 8.85 in
Weight0.97 kg / 2.14 lbs
WEEE weight1.42 kg / 3.13 lbs
Shipping weight1.93 kg / 4.25 lbs
MTBF (years)43.9
Environment (Operating/Storage)32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity5-95% non-condensing
Regulatory
Major regulatory complianceFCC Class B, FCC , ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV/ GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
*
*
*
