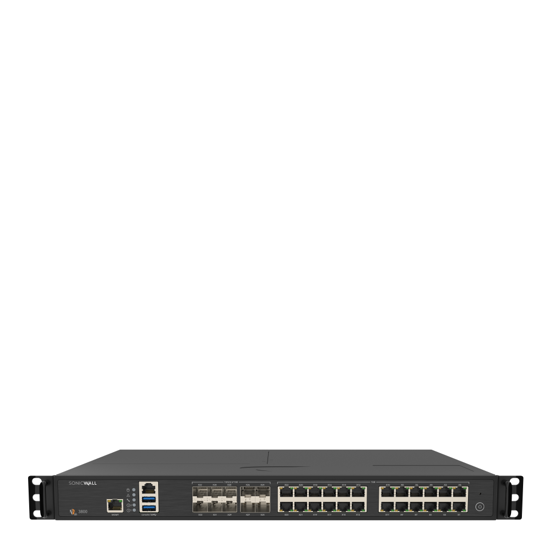

SonicWall NSa 3800 Front
SonicWall NSa 3800 Rear
 AGSS
 Appliance
SonicWall NSa 3800 Front
SonicWall NSa 3800 Rear

SonicWall NSa 3800 TotalSecure Advanced Edition

SonicWall NSa 3800 Appliance with a 1 year Advanced Protection Service Suite (APSS) subscription. APSS includes - Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, NSM Essential with Management & 7-Day Reporting and 24x7 Support with firmware.
SKU: 03-SSC-4646
£7,019.82
£5,076.73
(not including discount)

SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) 3800 offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class.

The 3800 is the cornerstone of the threat protection solution that includes simplified centralised firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation. The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.

Looking for the best price for an
NSa 3800 TotalSecure Advanced Edition?
That's our job!

We work directly with SonicWall HQ to make sure you always get the best possible quote.

And don't forget the additional
10% education discount (where applicable).

Email us

contact@sonicwallsecurity.co.uk

Call us

+44 (0)20 8830 6820

SonicWall NSa 3800 Next Generation Firewall Video:

Highlights:
  1. 1U rack mounted
  2. Multi-gigabit threat and malware analysis throughput
  3. 24 x 1 GbE interfaces
  4. 10 x 10 GbE interfaces
  5. Superior TLS performance (sessions and throughput)
  6. Best-in-class price-performance
  7. Expandable storage
  8. Wi-Fi 6 firewall management
  9. Secure SD-WAN capability
  10. Enterprise internet edge ready
  11. TLS 1.3 support
  12. Cloud Secure Edge connector support
  13. Powered by SonicWall Capture Labs threat research team
  14. SonicWall switch, SonicWave access point and Capture Client integration

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterpriselevel workflows. It offers easy policy configuration, zero-touch deployment and flexible management — all of which allow enterprises to improve both their security and operational efficiency. NSa 3800 support advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.

Firewall General
Operating systemSonicOS 8
Interfaces24x1GbE, 10x10G SFP+, 2 USB 3.0, 1 GbE Management, 1 Console
ExpansionStorage Expansion Slot (Up to 512GB)
Storage256GB M.2
VLAN Interfaces256
Access points supported (maximum)512
Firewall/VPN Performance
Firewall inspection throughput12.0 Gbps
Threat Prevention throughput8.0 Gbps
Application inspection throughput9.0 Gbps
IPS throughput8.0 Gbps
Anti-malware inspection throughput8.0 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL)3.0 Gbps
IPSec VPN throughput8.0 Gbps
Connections per second90000
Maximum connections (DPI)1200000
VPN
Site-to-site tunnels3000
SSL VPN licenses (max)2 (500)
IPSec VPN clients (max)50 (1000)
Encryption/AuthenticationDES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchangeDiffie Hellman Groups 1, 2, 5, 14v
Route-based VPNRIP, OSPF, BGP
Certificate supportVerisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN featuresDead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supportedMicrosoft® Windows 10 and Windows 11
NetExtenderMicrosoft® Windows 10 and Windows 11, Linux
Mobile ConnectApple® iOS, Mac OS X, Google® Android™
Security Services
Deep Packet Inspection servicesGateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS)HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam ServiceSupported
Application VisualizationYes (EPSS / APSS subscription)
Application ControlYes (EPSS / APSS subscription)
Capture Advanced Threat ProtectionYes (EPSS / APSS subscription)
DNS FilteringYes (EPSS / APSS subscription)
Networking
IP address assignmentStatic (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoSBandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
AuthenticationLDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
Local user database1000
VoIPFull H323-v1-5, SIP
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pendingIPv6
High availabilityActive/Active with stateful synchronization
Hardware
Form factor1U Rack Mountable
Power supply (W)150
Maximum power consumption (W)102.3
Input power100-240 VAC, 50-60 Hz
Total heat dissipation341 BTU
Dimensions43 x 32.5 x 4.5 (cm)
Weight4.6 kg
WEEE weight4.8 kg
Shipping weight7.2 kg
Major regulatoryFCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI
Advanced Protection Service Suite
Complete network security, content filtering, application control, CaptureATP, gateway anti-virus, anti-spam, 24x7 support, cloud management and reporting in a single integrated package.

The SonicOS architecture is at the core of SonicWall physical and virtual firewalls including the TZ, NSa, NSv and NSsp Series. SonicOS leverages our patented, single-pass, lowlatency, Reassembly-Free Deep Packet Inspection® (RFDPI) and patent-pending Real-Time Deep Memory Inspection™ (RTDMI) technologies to deliver industry-validated high security effectiveness, SD-WAN, real-time visualization, high-speed virtual private networking (VPN) and other robust security features.

Through a combination of cloud-based and on-box technologies we deliver protection to our firewalls that’s been validated by independent third party testing for its extremely high security effectiveness. Unknown threats are sent to SonicWall’s cloud-based Capture Advanced Threat Protection (ATP) multiengine sandbox for analysis. Enhancing Capture ATP is our RTDMI™ technology. The RTDMI engine detects and blocks malware and zero-day threats by inspecting directly in memory. RTDMI technology is precise, minimizes false positives, and identifies and mitigates sophisticated attacks where the malware’s weaponry is exposed for less than 100 nanoseconds.

At a Glance
  1. Complete network security solution
    All service licences included.
  2. Capture ATP
    Multi-engine network sandbox to prevent zero-day threats. See Capture Advanced Threat Protection Service (CATPS).
  3. Gateway anti-virus and anti-spyware protection
    Including DPI-SSL and RFDPI.
  4. Cutting-edge IPS technology
    Protects against worms, trojans, software vulnerabilities and other intrusions by scanning all network traffic for malicious or anomalous patterns.
  5. Application intelligence and control
    Set of granular, application-specific policies providing application classification and policy enforcement to help administrators control and manage both business and non-business related applications.
  6. Content filtering
    Enforce internet use policies and control internal access to inappropriate, unproductive and potentially illegal web content with comprehensive content filtering. See Content Filtering Service (CFS).
  7. Network Topology View
    Display hosts, access-points in the network based on device name, mac address and IP Address.
  8. 24x7 support with firmware updates and hardware replacement
    Including firmware updates and hardware replacement protects your business and your SonicWall investment.
  9. Management and reporting
    Manage and view reports on firewalls via cloud through Network Security Manager tile of Capture Security Center. See Capture Security Centre (CSC).
*
*
*
